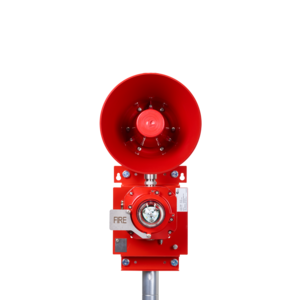

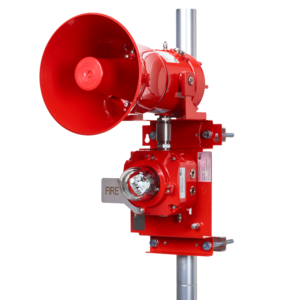

E2S: D2xCF

Class I Div 2 hazardous location horn/speaker & strobe - up to 114dB(A), up to 79cd UL1971 public mode fire

E2S: D2xCF
  • E2S: D2xCF
  • E2S: D2xCF
Accreditation
Accreditation image Accreditation image Accreditation image Accreditation image
Coding

NEC/CEC Class Div
Class I Div 2 ABCD T1 Ta -40° to +122°F
Class II Div 2 FG T4 Ta -40° to +122°F
Class III Div 1&2 Ta -40° to +122°F

NEC Class Zone
Class I Zone 2 AEx ec IIC Gc T1 Ta -40° to +122°F
Zone 22 AEx tc IIIB T75°C Dc Ta -40° to +122°F

CEC Class Zone
Class I Zone 2 Ex ec IIC Gc X T1 Ta -40° to +122°F
Zone 22 Ex tc IIIC T75°C Dc X Ta -40° to +122°F
More from this collection
E2S: D2xCF

E2S: D2xCF

Class I Div 2 hazardous location horn/speaker & strobe - up to 114dB(A), up to 79cd UL1971 public mode fire
Description

The D2xCF is the optimum solution for public mode fire alarm signaling in hazardous locations. With a choice of either alarm horn or speaker the factory assembled configuration integrates the audible signal with a high output 79.3cd output LED strobe or 70.29cd Xenon.

Robust Type 4/4X, IP66 marine grade, corrosion proof aluminum enclosures with 316L stainless steel back plate – approved for Class I/II Division 2 and Class I Zone 2/22 applications. The D2xCF combines the industry leading D2xB1LD3 LED or D2xB1XH2 Xenon strobe with a 123dB(A) horn or 15W or 25W speaker. The strobe utilizes an array of super high power Cree® LED’s, orientated to optimize visibility. The alarm horn employs class D amplification to provide a high sound output at optimum operating current.
Features
  • UL464 and CAN/ULC-S525
  • UL1480 and CAN/ULC-S541
  • UL1971 & UL1638 and CAN/ULC-S526
  • Public & private mode fire use
  • Automatic synchronization on multi-horn & strobe systems
  • Alarm horn: integrated tone generator with 64 alarm tones
  • Speaker: 15W or 25W models with 25/70V transformer
  • Marine grade aluminium enclosure
  • Ingress protection Type 4/4X/3R/13, IP66
  • High impact resistant Borosilicate glass lens
  • Supervisory diode – duplicated terminals
  • Dual 1/2"NPT entries with haz loc rated stopping plugs
  • 316L stainless steel back plate
  • Supplied with stainless steel pole mount kit
  • Manufacturer warranty: 10 years
Select product and buy
PART NUMBER: D2xCF7CL1FMN1C1R
Quantity
$ 1,710.90 $ 2,349.39
Description

The D2xCF is the optimum solution for public mode fire alarm signaling in hazardous locations. With a choice of either alarm horn or speaker the factory assembled configuration integrates the audible signal with a high output 79.3cd output LED strobe or 70.29cd Xenon.

Robust Type 4/4X, IP66 marine grade, corrosion proof aluminum enclosures with 316L stainless steel back plate – approved for Class I/II Division 2 and Class I Zone 2/22 applications. The D2xCF combines the industry leading D2xB1LD3 LED or D2xB1XH2 Xenon strobe with a 123dB(A) horn or 15W or 25W speaker. The strobe utilizes an array of super high power Cree® LED’s, orientated to optimize visibility. The alarm horn employs class D amplification to provide a high sound output at optimum operating current.
Features
  • UL464 and CAN/ULC-S525
  • UL1480 and CAN/ULC-S541
  • UL1971 & UL1638 and CAN/ULC-S526
  • Public & private mode fire use
  • Automatic synchronization on multi-horn & strobe systems
  • Alarm horn: integrated tone generator with 64 alarm tones
  • Speaker: 15W or 25W models with 25/70V transformer
  • Marine grade aluminium enclosure
  • Ingress protection Type 4/4X/3R/13, IP66
  • High impact resistant Borosilicate glass lens
  • Supervisory diode – duplicated terminals
  • Dual 1/2"NPT entries with haz loc rated stopping plugs
  • 316L stainless steel back plate
  • Supplied with stainless steel pole mount kit
  • Manufacturer warranty: 10 years
Downloads

Datasheet.pdf

D2xCF_Speaker_&_Strobe_Install_Manual.pdf

D2xCF_Horn_&_Strobe_Install_Manual.pdf
