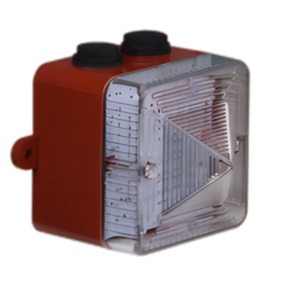

E2S: L101H / L101X

NEMA 4X strobe - LED or Xenon, UL1638, 24Vdc

More from this collection

E2S: L101H / L101X

NEMA 4X strobe - LED or Xenon, UL1638, 24Vdc

Description

The L101H LED strobe and L101X xenon strobe are compact, high-performance visual notification appliances engineered for fire alarm, security, status indication, and industrial process control systems. Both devices feature a fire-retardant, UV-stable enclosure certified to NEMA Type 4/4X/13 and 3R with IP66/IP67 ingress protection, ensuring reliable operation in corrosive, wet, and outdoor environments. The L101H incorporates an array of 18 high-output LEDs providing multiple selectable flash patterns and a steady-on mode, optimized for low power consumption and long service life. The L101X employs a 5 Joule xenon strobe with automatic synchronization and an effective light output of 200 candela, delivering high-intensity visual warning suitable for high ambient light and high-noise industrial areas. The L101H is UL, cUL, and ULC listed, while the L101X is UL/cUL listed, CPR compliant, and tested to UL 1638 and EN 54-23. Both units are designed for use in safety-related applications and are SIL 1 and SIL 2 Route 2H compliant to IEC 61508 (2010), supporting integration into safety-instrumented and life-safety signaling systems in regulated US installations.

Features

L101H / L101X
•Globally approved for fire and general signalling applications
•UL1638 compliant (private mode fire alarm & general signalling use)
•CAN/ULC-S526 fire alarm approved
•UL Marine approved
•Automatic synchronization for multi-device systems
•Continuously rated (100% duty cycle)
•Dual M20 or 1/2" NPT clearance cable entries with stopping plugs
•Duplicate pluggable cable terminations – Class A
•Ingress protection: IP66/IP67 Type 4/4X/13/3R
•Diode polarised for use in supervised circuits
•Manufacturer warranty: 10 years


Differences
•Light source technology: L101H - LED (18 × Cree high-intensity LEDs); L101X – Xenon strobe
•Flash / visual modes: L101H - steady mode + 7 flash modes (including temporal pattern); L101X - 3 user-selectable flash rates
•Certification scope: L101X - EN54-23 VAD, CPR compliance
•Performance profile: L101H - lower power, long-life LED visual signalling; L101X - high-intensity Xenon discharge for high-impact visual alertingProduct positioning: L101H - solid-state LED beacon; L101X - Xenon strobe with extended operating capability

Approvals
Select product and buy
PART NUMBER: L101XDC024MA0A1R/C
Quantity
Sale price  $ 136.81 Regular price  $ 192.95
