D1xB2 Series Strobe, Explosion Proof UL1638 - 24VDC - 5,10,15 & 21 Joule - Self Synchronizing Class 1 Div 1 & 2

E2s

D1xB2 Series Strobe, Explosion Proof UL1638 - 24VDC - 5,10,15 & 21 Joule - Self Synchronizing Class 1 Div 1 & 2

Log in or Create an Account to see pricing and buy online.
$ 2,301.13

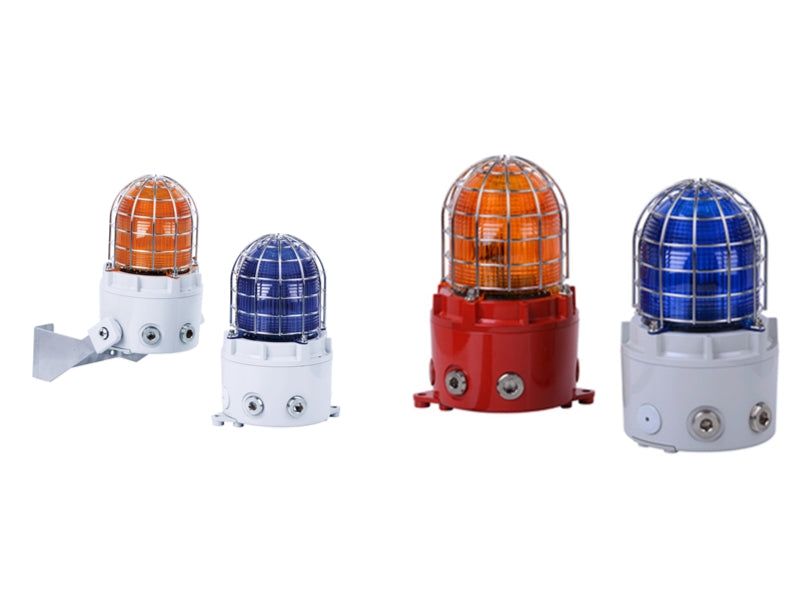

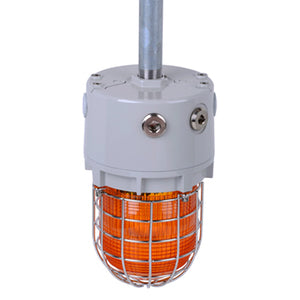

The D1xB2X series is a globally approved explosion proof 5, 10, 15, and 21-joule Xenon beacon. The robust IP66, Type 4/4X corrosion proof LM6 marine grade aluminium alloy enclosure ensures suitability for all Class I/II Div. 1, Zone 1, 2, 21 & 22 applications. Approved to UL1638 and CAN/ULC S526 for fire alarm use, the D1xB2X beacons produce a high-output Xenon flash required for effective signalling in environments with elevated levels of ambient light. The field-replaceable colour filter enhances the strobe and is constructed from UV-stable PC. The robust enclosure features a threaded flame path and four cable entries. Mounting options include surface mounting via integrated lugs, pendant or the addition of optional multi direction stainless steel bracket. SIL1 is compliant to IEC61508 (2010) as standard; SIL2 is available.



Share this Product
