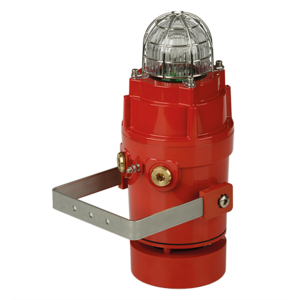

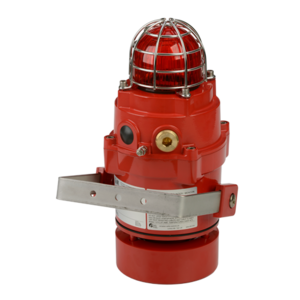

E2S: D1xC1X05R / D1xC1X10R

The D1xC1X05R and D1xC1X10R are globally certified alarm horn with a compact, omni-directional horn combined with a Xenon strobe, available in 5 Joule and 10 Joule versions respectively. The robust Type 4/4X, IP66/67 (model dependent) marine grade, corrosion-proof aluminum enclosure is approved for Class I & II Div 1, Zone 1 & 20, and IECEx and ATEX Zones 1, 2, 21 & 22 explosion-proof signaling applications.

Featuring 64 alarm tones, each of the 4 stage/channels can be remotely activated. Class D amplification provides a high sound output with optimized operating current (dual power modes on select models). The threaded flameproof joint, multiple cable entries, and duplicated, pluggable terminations simplify both installation and routine maintenance. The 24Vdc version is approved for public (alarm horn) and private mode fire alarm use (strobe beacon). SIL1 and SIL2 compliant to IEC 61508 (2010) as standard.

D1xC1X05R/D1xC1X10R
• Maximum sound pressure level output of 101dB(A)
• Choice of 64 alarm tone frequencies
• 4 remotely selectable alarm stages/channels
• Positive or negative line stage/channel switching
• Automatic synchronization on multi-beacon & sounder systems
• User selectable strobe flash rates
• Field replaceable lens colour filter
• Ratchet adjustable 316 stainless steel bracket
• Available with custom tone configurations and frequencies
• Robust corrosion proof aluminium enclosure
• Duplicate cable terminations
• UL464 / CAN/ULC-S525 & UL1638 / CAN/ULC-S526

Difference
• Peak Candela: 1,000,000 cd – calculated from energy
(J) (D1xC1X10R), 500,000 cd – calculated from energy (J) (D1xC1X05R)
• Effective Intensity: 500 cd – calculated from energy (J) (D1xC1X10R), 250 cd – calculated from energy (J) (D1xC1X05R)
• Peak Candela: 85,544 cd* – measured ref. to I.E.S. (D1xC1X10R), 46,976 cd* – measured ref. to I.E.S. (D1xC1X05R)
• Effective Intensity: 260 cd* – measured ref. to I.E.S. (D1xC1X10R), 143 cd* – measured ref. to I.E.S. (D1xC1X05R)

UL_Certificate_of_Compliance.pdf

CSFM_Listing.pdf

IECEx_Certificate.pdf

ATEX_Certificate.pdf
