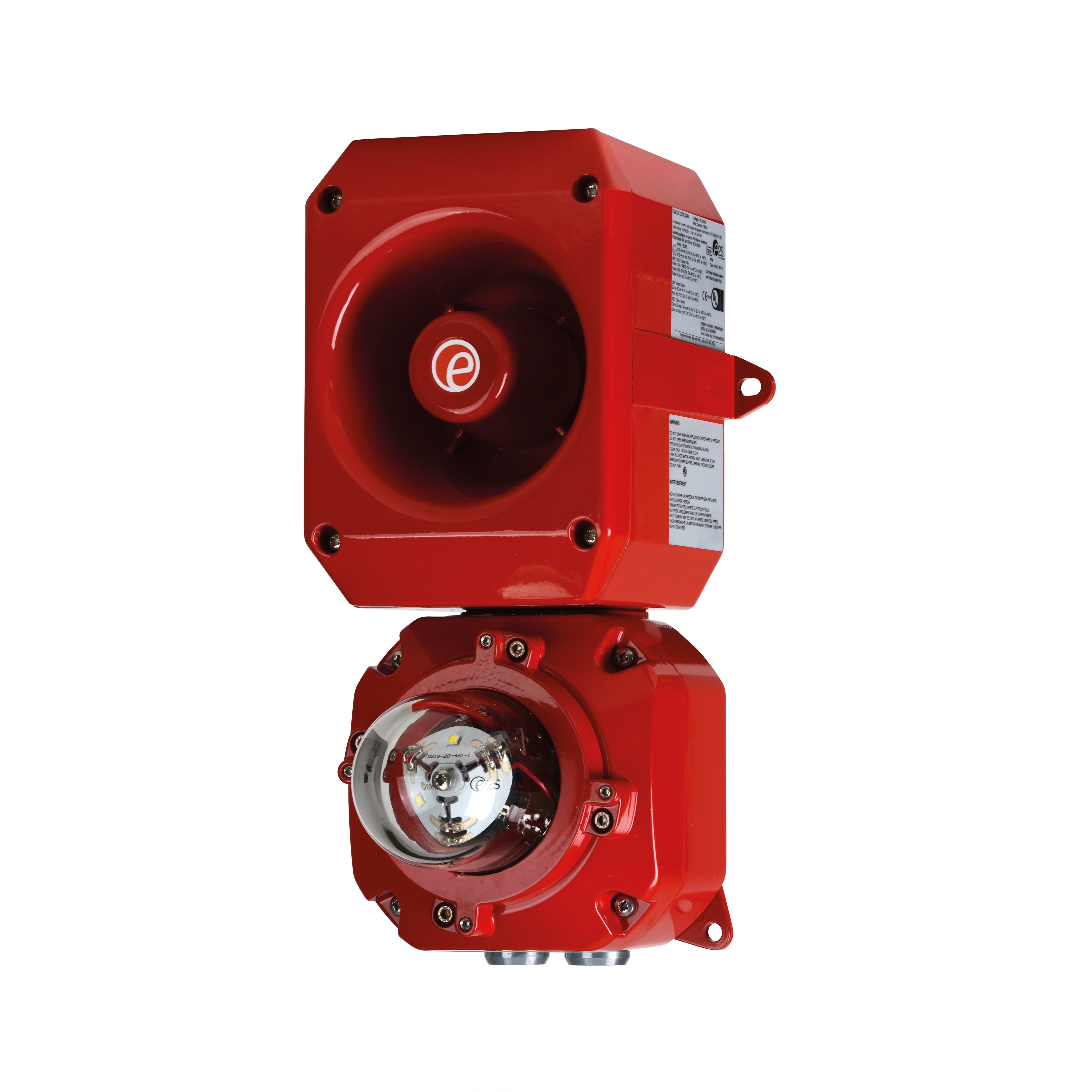

E2S: D2xC2LD3

Class I Division 2 hazardous location combined alarm horn & LED strobe - 79.3cd UL1971, 107.5cd UL1638, 107dB(A), 64 tones

Accreditation
Accreditation image Accreditation image Accreditation image Accreditation image Accreditation image
Coding

NEC / CEC:
Class I Div 2 ABCD T4 Ta -40°C to +50°C
Class II Div 2 FG T6 Ta -40°C to +50°C
Class III Div 1&2 Ta -40°C to +50°C

NEC:
Class I Zone 2 AEx ec IIC Gc T4 Ta -40°C to +50°C
Zone 22 AEx tc IIIB T75°C Dc Ta -40°C to +50°C

CEC:
Class I Zone 2 Ex ec IIC Gc X T4 Ta -40°C to +50°C
Zone 22 Ex tc IIIC T75°C Dc X Ta -40°C to +50°C

Approvals

Videos

More from this collection

E2S: D2xC2LD3

Class I Division 2 hazardous location combined alarm horn & LED strobe - 79.3cd UL1971, 107.5cd UL1638, 107dB(A), 64 tones

Description

The haz loc D2xC2LD3 is an auto-synchronizing alarm horn & LED strobe warning light tested to UL464 & UL1971 suitable for public mode fire alarm, ADA compliant, hearing impaired applications. UL1971 rating of 79.3cd. NFPA 72 compliant 20ms pulse.

The D2xC2LD3 utilizes an array of super high power Cree® LED’s, orientated to optimize visibility in any direction. The 20ms pulse creates an intense flash comparative to a Xenon strobe. Multiple D2xC2LD3 units will auto-synchronize when powered from the same power source removing the need for any additional sync modules on the circuit. The horn & LED light can be powered from the same source, simplifying installation and reducing cabling costs. UL1971 effective candela rating of 79.3cd. The unit is UL/cUL, ULC, IECEx and ATEX approved for hazardous locations.

Features
  • Public mode fire use UL1971 & CAN/ULC-S526
  • Private mode fire use UL1638
  • Auto-synchronized for over 2 hours per UL1971
  • 79.3 effective candela – UL1971 Public mode fire
  • 107.5 effective candela – UL1638 Private mode fire
  • 252.0 effective candela – UL1638 General signaling
  • 107dB(A) @ 10ft/3m maximum sound output
  • 64 alarm tones, 4 remotely selectable alarm stages/channels
  • Choice of four UL1971 tested flash rates: 1Hz, 1.3Hz, 1.5Hz & 2Hz
  • Marine grade aluminium enclosure
  • Ingress protection Type 4/4X/3R/13, IP66
  • High impact resistant borosilicate glass lens
  • Duplicate, pluggable cable terminations
  • Supervisory diode
  • Dual 1/2" NPT entries
  • Supplied with haz loc rated stopping plugs/adaptors
  • Manufacturer warranty: 10 years
Approvals
PART NUMBER: D2XC2LD3DC024BN0H1R/C
Quantity
Sale price  $ 2,230.32 Regular price  $ 3,145.54
Description

The haz loc D2xC2LD3 is an auto-synchronizing alarm horn & LED strobe warning light tested to UL464 & UL1971 suitable for public mode fire alarm, ADA compliant, hearing impaired applications. UL1971 rating of 79.3cd. NFPA 72 compliant 20ms pulse.

The D2xC2LD3 utilizes an array of super high power Cree® LED’s, orientated to optimize visibility in any direction. The 20ms pulse creates an intense flash comparative to a Xenon strobe. Multiple D2xC2LD3 units will auto-synchronize when powered from the same power source removing the need for any additional sync modules on the circuit. The horn & LED light can be powered from the same source, simplifying installation and reducing cabling costs. UL1971 effective candela rating of 79.3cd. The unit is UL/cUL, ULC, IECEx and ATEX approved for hazardous locations.

Features
  • Public mode fire use UL1971 & CAN/ULC-S526
  • Private mode fire use UL1638
  • Auto-synchronized for over 2 hours per UL1971
  • 79.3 effective candela – UL1971 Public mode fire
  • 107.5 effective candela – UL1638 Private mode fire
  • 252.0 effective candela – UL1638 General signaling
  • 107dB(A) @ 10ft/3m maximum sound output
  • 64 alarm tones, 4 remotely selectable alarm stages/channels
  • Choice of four UL1971 tested flash rates: 1Hz, 1.3Hz, 1.5Hz & 2Hz
  • Marine grade aluminium enclosure
  • Ingress protection Type 4/4X/3R/13, IP66
  • High impact resistant borosilicate glass lens
  • Duplicate, pluggable cable terminations
  • Supervisory diode
  • Dual 1/2" NPT entries
  • Supplied with haz loc rated stopping plugs/adaptors
  • Manufacturer warranty: 10 years
