Federal Signal: MPEX

Class I Division 1 explosion-proof fire alarm pull station - 120Vac, 6A, red

Accreditation
Accreditation image
Coding

NEC / CEC:
Class I Div 1 Group CD
Class II Div 1 Group EFG
Class III

Approvals
More from this collection

Federal Signal: MPEX

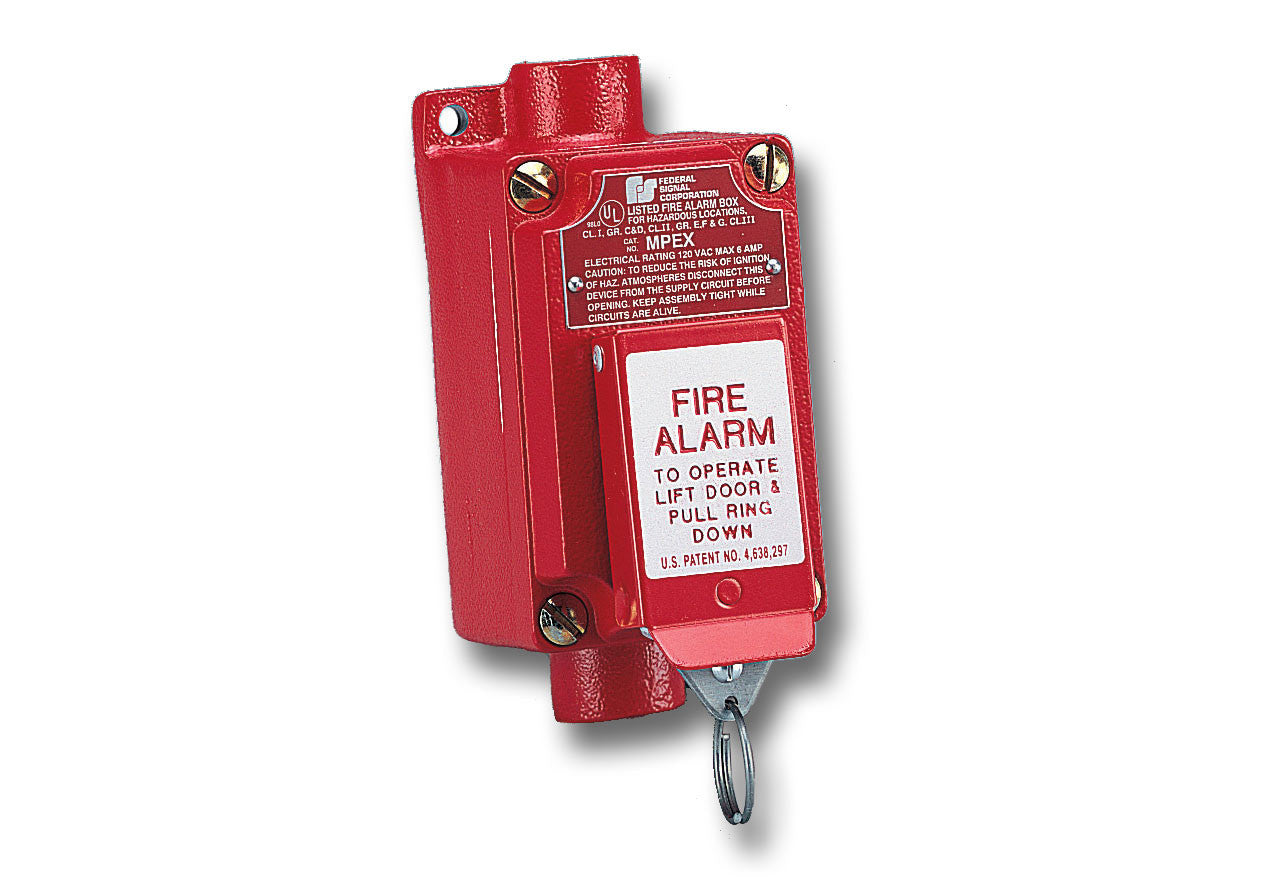

Class I Division 1 explosion-proof fire alarm pull station - 120Vac, 6A, red

Description

This Federal Signal fire alarm pull station is explosion-proof, designed for hazardous locations where flammable gases, vapors, combustible dusts or easily ignitable fibers are present. The pull station's unique swing-up front cover exposes a pull-down ring which activates the alarm; this two-step process prevents accidental activation. MPEX fire pull station is reset by depressing the shaft and returning the plate to its original position. The pull station enclosure is made of copper-free cast aluminum alloy.

Features

• Contacts on the unit are rated 120Vac, 60Hz at 6 amps continuous
• Highly visible red enclosure
• Lift cover and pull down ring to activate
• 2 - 3/4" conduit entry
• Explosion-Proof pull station
• UL and cUL Listed for Class I, Division 1, Groups C and D; Class II, Division 1, Groups E, F and G; Class III
• NEMA 7 for Groups C and D and NEMA 9 for Groups E, F and G
• UL Fire Listed and ULC Fire Listed
• Manufacturer warranty: 5 years

Approvals
Select product and buy
PART NUMBER: MPEX
Quantity
Sale price  $ 1,712.06 Regular price  $ 2,511.01
Description

This Federal Signal fire alarm pull station is explosion-proof, designed for hazardous locations where flammable gases, vapors, combustible dusts or easily ignitable fibers are present. The pull station's unique swing-up front cover exposes a pull-down ring which activates the alarm; this two-step process prevents accidental activation. MPEX fire pull station is reset by depressing the shaft and returning the plate to its original position. The pull station enclosure is made of copper-free cast aluminum alloy.

Features

• Contacts on the unit are rated 120Vac, 60Hz at 6 amps continuous
• Highly visible red enclosure
• Lift cover and pull down ring to activate
• 2 - 3/4" conduit entry
• Explosion-Proof pull station
• UL and cUL Listed for Class I, Division 1, Groups C and D; Class II, Division 1, Groups E, F and G; Class III
• NEMA 7 for Groups C and D and NEMA 9 for Groups E, F and G
• UL Fire Listed and ULC Fire Listed
• Manufacturer warranty: 5 years
