USI UniStat‰̣ۡå¢ Status Indicator

FederalSignal

USI UniStat‰̣ۡå¢ Status Indicator

Log in or Create an Account to see pricing and buy online.

Cut sheets

Instruction sheets

Features USI

  • Available in 24VDC and 120VAC
  • Tri or quad-color models
  • 100,000 hour, vibration resistant LED light source
  • Available with built-in sounder (Model USIS)
  • Surface mount and integrated 3/4 inch pipe mount
  • PLC compatible
  • Indoor use only
  • Type 4X, IP66 enclosure
  • Type 1 with sounder
  • UL and cUL Listed

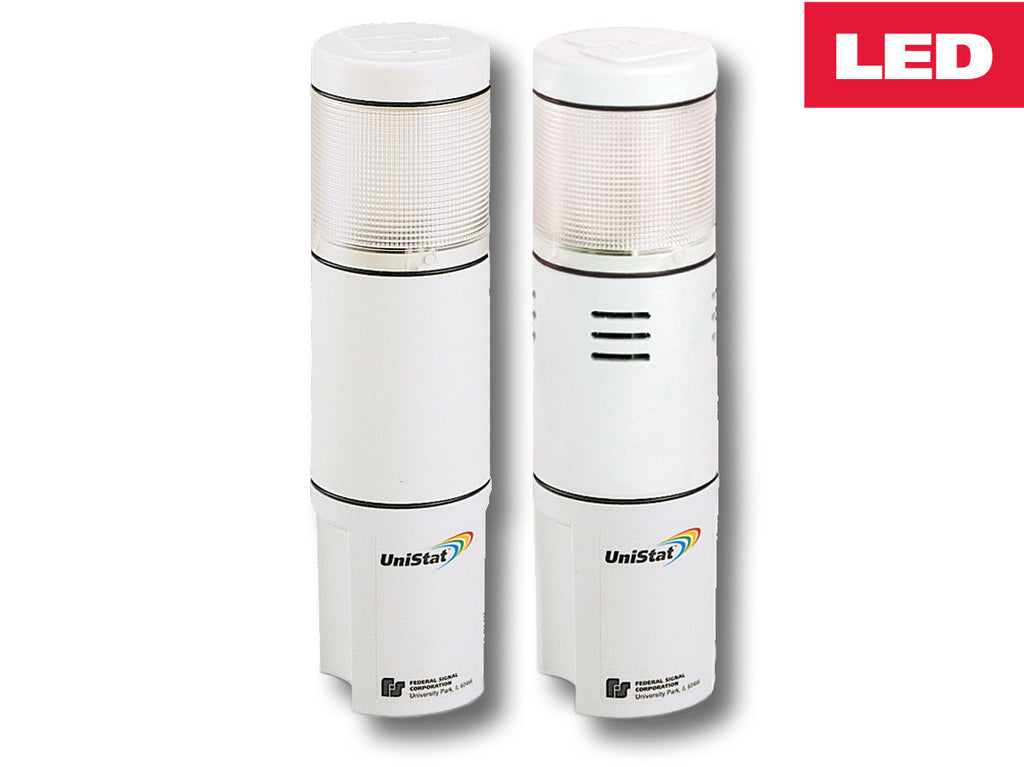

The UniStat is an LED (light emitting diode) based, multicolor, singlehigh status indicator. Using the latest die level LED technology, this unique status indicator can produce three colors (Amber, Green and Red) or four colors (Amber, Blue, Green and Red) from a single light source.

Using the latest die level LED technology, this unique status indicator can produce three colors (Amber, Green and Red) or four colors (Amber, Blue, Green and Red) from a single light source.

Ideal for OEM applications, the UniStat is compact, attractive, and easy to install. The low profile UniStat produces as much light as its much larger competitors.

The UniStat offers a choice of four integrated flash patterns steadyburn, slow flash, strobe flash and SimuStrobe. SimuStrobe simulates the attentiongetting flash rate of a strobe light but with a much more colorrich output. The user can choose a total of 12 possible flash/color combinations in the tricolor models and 16 in the quadcolor models.

When the application calls for an increased sense of urgency, specify the model USIS with an integrated piezo sounder*. Producing 60dB @ 10 feet, the USIS is the ideal attention getter in process control applications.

Like the multilevel, multicolor, multilamp MicroStat, the UniStat is rated Type 4X (models with sounder are rated Type1). Each model arrives preassembled and ready to surface mount or 3/4inch pipe mount. Options for the UniStat include pipe mount extensions (4,16, and 32), a wall mount bracket and a tulip mount base (see MicroStat Optional Equipment).

*Sounder draws 100 mA on all models
