154XST Supervised Class 1 Div 2 Warning Light UL1638 & UL1971 - 12-24VDC 4-wire supervised
Cut sheets
-
566.54 KB
- CS 154XSTHI UL1971ξ17cd w/ Guard 25cd without guard
Instruction sheets
-
2.71 MB
- IS 154XSTHI Instructions
Related Products
Features
154XST
- Available in 24VDC
- Four wires and supervisory diode

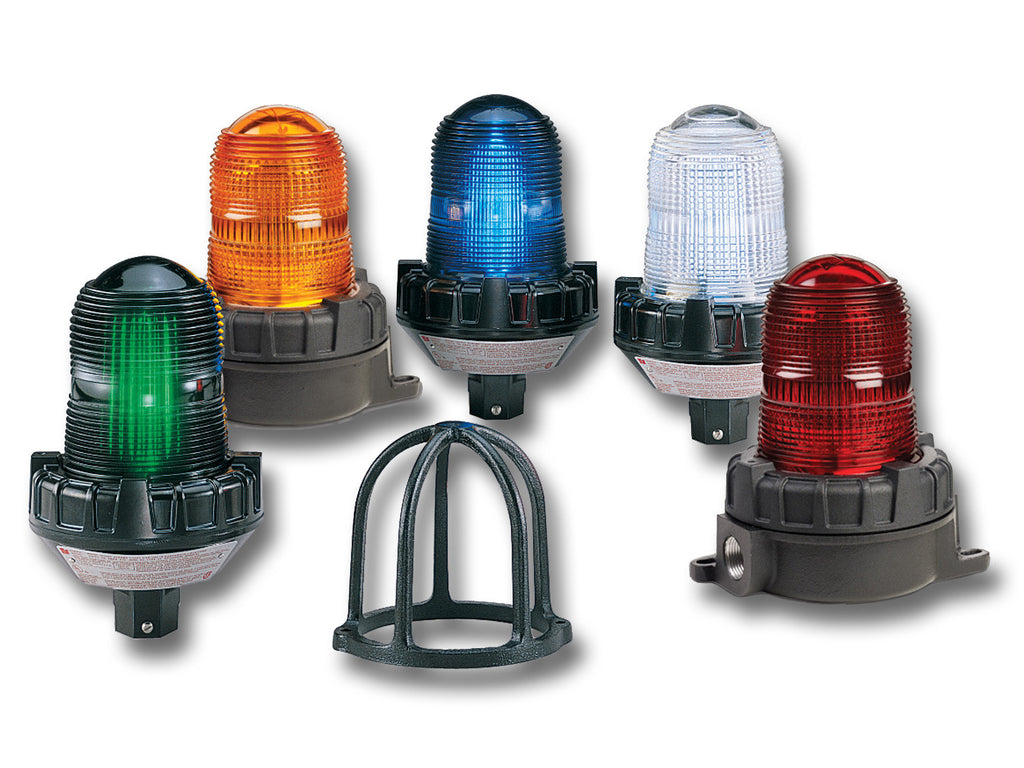

- Five dome colors
- 10,000 hour high-intensity strobe
- 3/4 inch NPT pipe mount
- Dome guard included
- Type 4X, IP66 enclosure
- Marine Rated
- Supervisable 4-wire power circuit
- CSFM Approved
- Indoor/outdoor use
- UL and cUL Listed

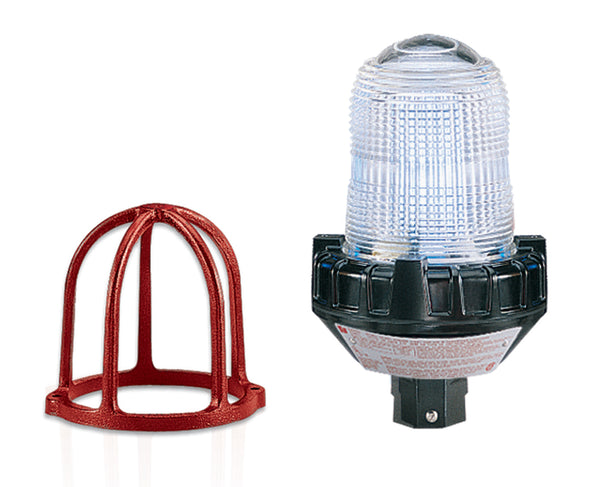

Federal Signal's Model 154XST hazardous location strobe light provides 80 high-intensity flashes per minute. This warning light is available in 24VDC with a 4-wire supervisable power circuit for fire alarm* and suppression supervised control panels.
The Model 154XST strobe light is UL and cUL Listed for Class I, Division 2, Groups A, B, C and D; Class II, Division 1, Groups E, F and G; and Class III.

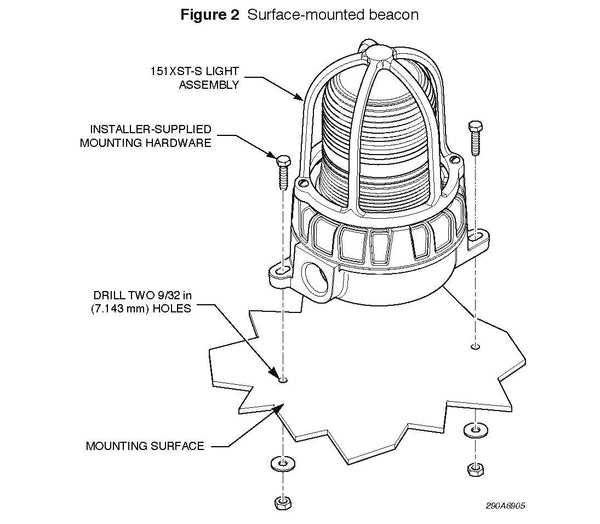

The 154XST meets Type 4X water-tight, dust-tight, and corrosion-resistant requirements; constructed to IP66. This hazardous location warning light has an aluminum base, coated for corrosion-resistance that is ready for surface mounting or mounting on a 3/4 inch pipe. The Dome Guard (included) fits over the glass dome to protect it against accidental collision with moving equipment, such as forklifts. The 154XST contains a diode and four wire leads for use in fire alarm* applications.
