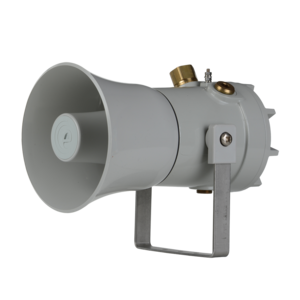

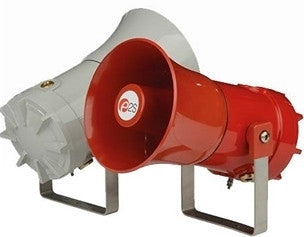

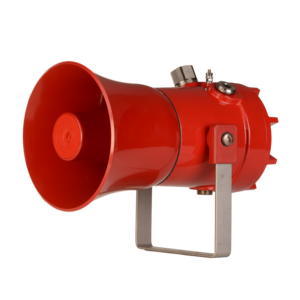

D1xS1F Directional Explosion proof Alarm Horn Sounder

E2s

D1xS1F Directional Explosion proof Alarm Horn Sounder

Log in or Create an Account to see pricing and buy online.

CUT SHEETS

INSTRUCTION SHEETS

  • High output, up to 107dB(A)
    Public mode fire alarm use
    4 remotely selectable alarm stages/channels Positive or negative line stage/channel switching
    Choice of 64 alarm tone frequencies
    Automatic synchronisation on multi-sounder system Continuously rated
    Compact form factor
    Robust corrosion proof aluminium enclosure Stainless steel fixings
    Triple cable entries
    Duplicate cable terminations (in & out for daisy-chain installations)
    Available with custom tone configurations and frequencies

  • Approvals
    UL File ref: E230764
    UL1203 Ed. 5
    CAN/CSA C22 .2 No. 25-1966
    CSA C22 .2 No. 30-M1986
    CSA C22 .2 No. 205-12
    UL464 Ed. 9
    Coding
    A 1: Gas version
    NEC / CEC:
    Class I Div 1 ABCD T6 Ta -40°C to +70°C Class I Div 2 ABCD T6 Ta -40°C to +70°C Class I Zone 1, 2
    IIC T6 Ta -40°C to +70°C D1:   Dust  version
    NEC / CEC:
    Class II Div 1 FG T6 Ta -40°C to +70°C Class II Div 2 FG T6 Ta -40°C to +70°C Class III Div 1 & 2
    Zone 20, 21, 22 IIIB Ta -40°C to +70°C
  •
    115dB(A) alarm horn. The D1xS1F is a high output alarm horn sounder with an directional,
    horn. Low current consumption and high SPL in a robust Type 4/4X, IP66 marine grade,
    corrosion proof aluminium enclosure ensure the D1xS1R is suitable for all Class I & II Division 1,
    Zone 1 & 20 explosion proof signaling applications. The 24V dc version is approved for public mode fire alarm use.
