E2S: D2xS1

Class l Division 2 hazardous location alarm horn warning siren - 107dB(A), 64 tones. UL464, 24/48Vdc, 115/230Vac, red/gray color

NEC / CEC:
Class I Div 2 ABCD T3C Ta -40°C to +70°C
Class I Div 2 ABCD T4 Ta -40°C to +65°C, T4A Ta -40°C to +50°C
Class II Div 2 FG T5 Ta -40°C to +50°C, T6 Ta -40°C to +45°C
Class III Div 1&2 Ta -40°C to +50°C

NEC:
Class I, Zone 2 AEx ec IIC T4 Gc Ta -40ºC to +50°C
Zone 22 AEx tc IIIC T90°C Dc Ta -40ºC to +50°C

CEC:
Class I Zone 2 Ex ec IIC T4 Gc X Ta -40ºC to +50°C
Zone 22 Ex tc IIIC T90°C Dc Ta -40ºC to +50°C

UL_Certificate_of_Compliance.pdf

CSFM_Listing.pdf

IECEx_Certificate.pdf

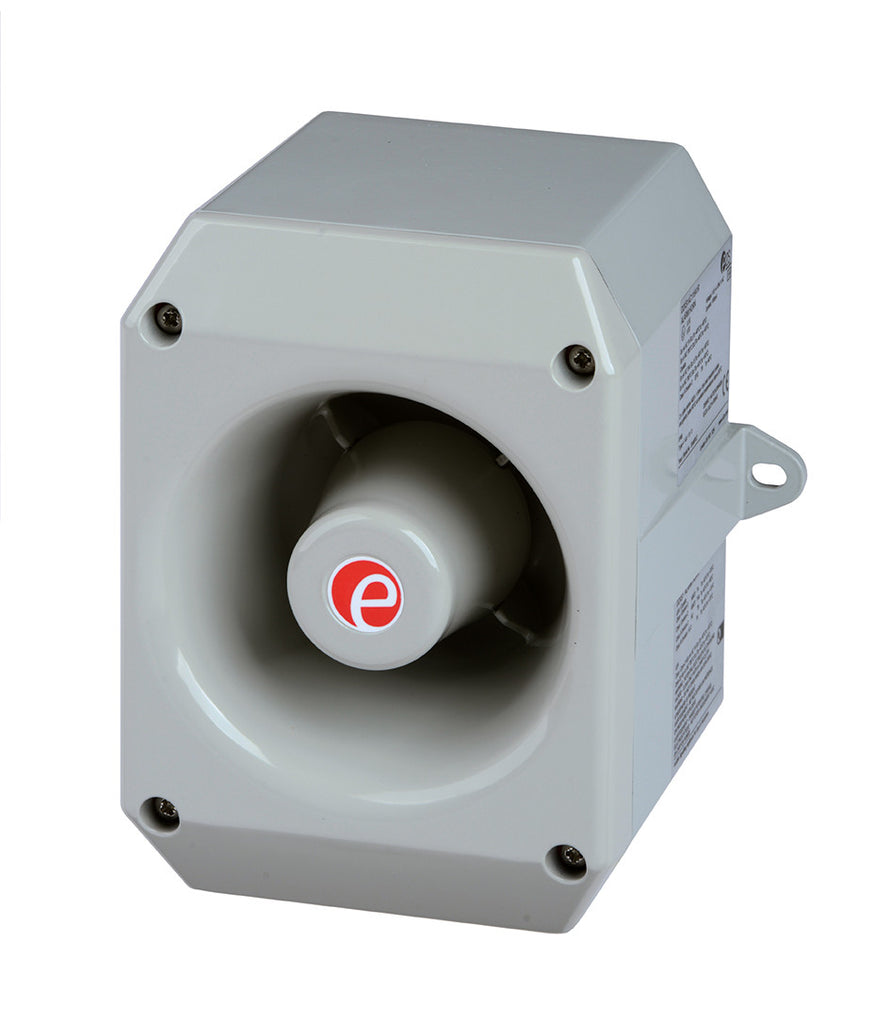

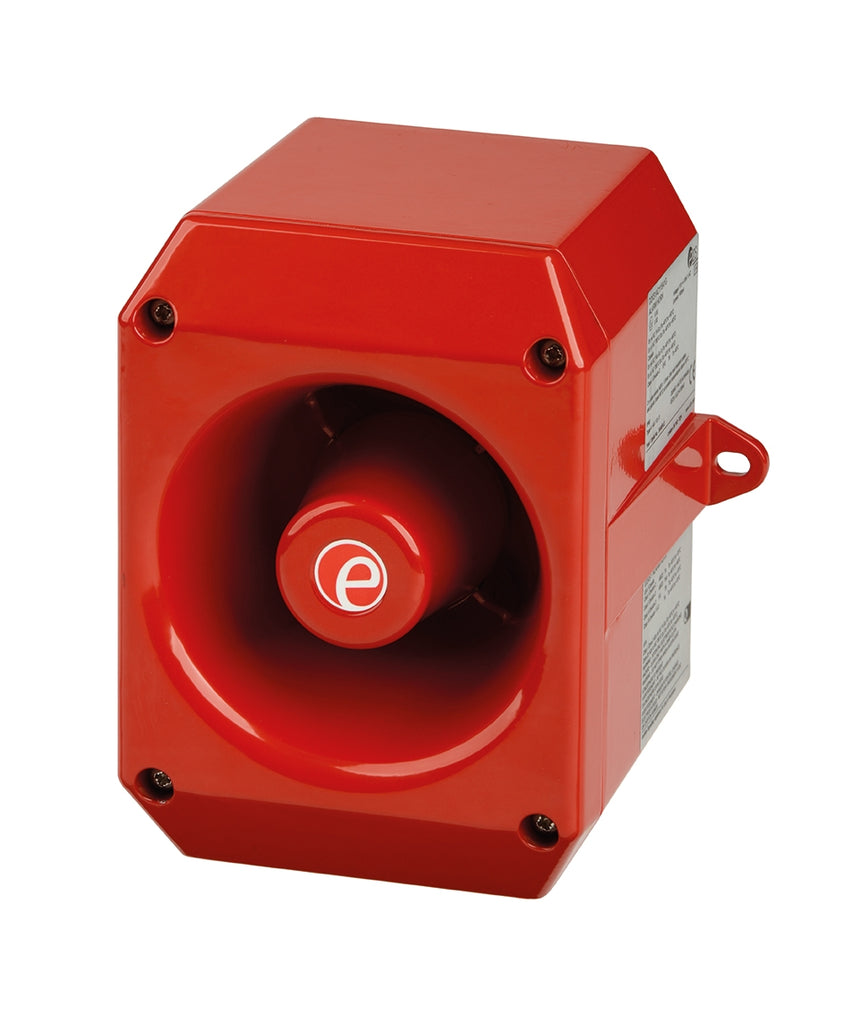

E2S: D2xS1

Class l Division 2 hazardous location alarm horn warning siren - 107dB(A), 64 tones. UL464, 24/48Vdc, 115/230Vac, red/gray color

The D2xS1 is a high output, 107dB(A) alarm horn sounder. Low current consumption and high SPL in a compact robust Type 4/4X, IP66 enclosure ensure the D2xS1 is suitable for all haz loc fire alarm system and general signaling applications.

The corrosion proof, marine grade aluminum die cast enclosure is chromated and powder coated providing resilience in the harshest of environments. One device, globally certified: ATEX, IECEx Zone 2 & 22; NEC/CEC CI D2 and CII D2; NEC CI Zone 2 and Zone 22; CEC Zone 2 & 22 and CII D2. UL, cUL & ULC approved 24Vdc version for public mode fire alarm use.
