Federal Signal: 24XST

Class I Division 1 explosion-proof supervised strobe - UL1638, 280cd, 24Vdc, 2A surge current

Accreditation
Accreditation image Accreditation image
Coding

NEC / CEC:
Class I Div 1 Group CD T6 Ta ≤ +40°C
Class I Div 1 Group CD T4A Ta ≤ +65°C
Class I Div 2 Group ABCD T2 Ta ≤ +65°C
Class II Div 1 Group EFG T6 Ta ≤ +40°C
Class II Div 1 Group EFG T4A Ta ≤ +65°C
Class III T6 Ta ≤ +40°C
Class III T4A Ta ≤ +65°C

Approvals

Videos

More from this collection

Federal Signal: 24XST

Class I Division 1 explosion-proof supervised strobe - UL1638, 280cd, 24Vdc, 2A surge current

Description

Federal Signal’s Model 24XST Explosion-Proof Strobe Light produces 60 high-intensity flashes per minute. The 24XST features a current in-rush limiting PCB design to provide improved compatibility with in-rush sensitive devices. This design limits the peak In-rush to 2A and operates on only 0.71A, when powered by 24Vdc. To synchronize strobe lights, purchase the Synchronization Module (SSM) separately.

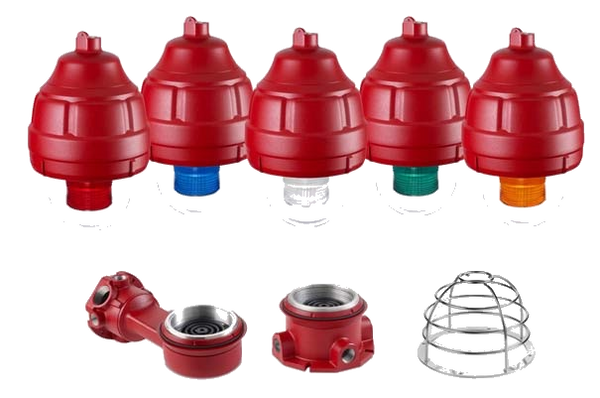

Model 24XST can be paired with a pendant, ceiling or wall mount. The installation process is simple; by pre-installing the mounting box, the fixture can be simply threaded onto the mounting box, making an electrical connection when the threads are engaged.

Model 24XST offers a heavy duty, copper-free cast aluminum housing is sealed with a black powder coat paint. This unit is specifically designed for explosion-proof atmospheres and/or corrosive environments. The 24XST is ideal for use in areas such as oil rigs, mines, refineries, and chemical plants.

Features
  • Approved for mounting in any manner – including dome up
  • Available in 24Vdc
  • Six lens colors: Amber, Blue, Clear, Green, Magenta, and Red
  • 10,000 hour strobe tube
  • 3/4" NPT pendant, ceiling, and wall mount options available
  • Dome guard optional
  • Conformal coated PCB
  • Type 4X, IP66 enclosure
  • IP69K compliant
  • Marine Rated
  • CSFM Approved
  • UL and cUL Class I, Division 1, Groups C and D; Class I, Division 2, Groups A, B, C and D; Class II, Division 1, Groups E, F and G; Class III
  • Mount not included - it is optional
  • Manufacturer warranty: 5 years
Approvals
Select product and buy
PART NUMBER: 24XST-024A-MOD
Quantity
Sale price  $ 1,905.29 Regular price  $ 2,794.43
Description

Federal Signal’s Model 24XST Explosion-Proof Strobe Light produces 60 high-intensity flashes per minute. The 24XST features a current in-rush limiting PCB design to provide improved compatibility with in-rush sensitive devices. This design limits the peak In-rush to 2A and operates on only 0.71A, when powered by 24Vdc. To synchronize strobe lights, purchase the Synchronization Module (SSM) separately.

Model 24XST can be paired with a pendant, ceiling or wall mount. The installation process is simple; by pre-installing the mounting box, the fixture can be simply threaded onto the mounting box, making an electrical connection when the threads are engaged.

Model 24XST offers a heavy duty, copper-free cast aluminum housing is sealed with a black powder coat paint. This unit is specifically designed for explosion-proof atmospheres and/or corrosive environments. The 24XST is ideal for use in areas such as oil rigs, mines, refineries, and chemical plants.

Features
  • Approved for mounting in any manner – including dome up
  • Available in 24Vdc
  • Six lens colors: Amber, Blue, Clear, Green, Magenta, and Red
  • 10,000 hour strobe tube
  • 3/4" NPT pendant, ceiling, and wall mount options available
  • Dome guard optional
  • Conformal coated PCB
  • Type 4X, IP66 enclosure
  • IP69K compliant
  • Marine Rated
  • CSFM Approved
  • UL and cUL Class I, Division 1, Groups C and D; Class I, Division 2, Groups A, B, C and D; Class II, Division 1, Groups E, F and G; Class III
  • Mount not included - it is optional
  • Manufacturer warranty: 5 years
