The Signal Source

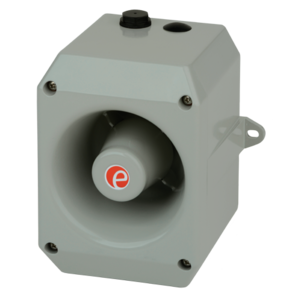

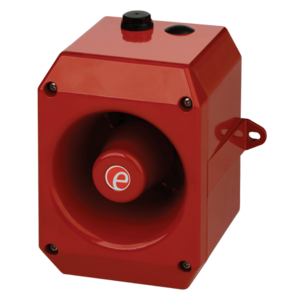

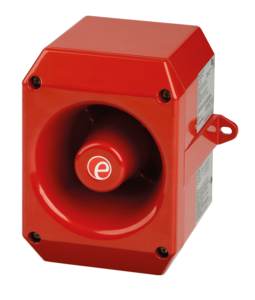

D105 high output, 32 tone Alarm Sounder
The D105 is a high output, 112dB(A) alarm sounder. Low current consumption and high SPL in a robust IP66 housing ensure the D105 is suitable for all general signalling applications including fire, security and process control. The corrosion proof, marine grade aluminium die cast enclosure is phosphated and powder coated providing resilience in the harshest of industrial environments.
High output, up to 112 dB(A) SPL
3 remotely selectable alarm stages
Choice of 32 alarm tone frequencies
Automatic synchronisation on multi-sounder system.
Stainless steel fixings.
Duplicate cable terminations (in & out for daisy-chain
Tropicalisation available on request.
Available with custom tone configurations and frequencies.
‘Programmable’ version available:
- 45 alarm tones
- 4 remotely selectable stages
- Any tone can be assigned to any stage
- User configurable continuous frequency tone
UL & cULs approved: UL464 General signalling use.
