D2xB1LD2 Class 1 Div 2 LED Beacon Warning Light - 24VDC

Log in or Create an Account to see pricing and buy online.

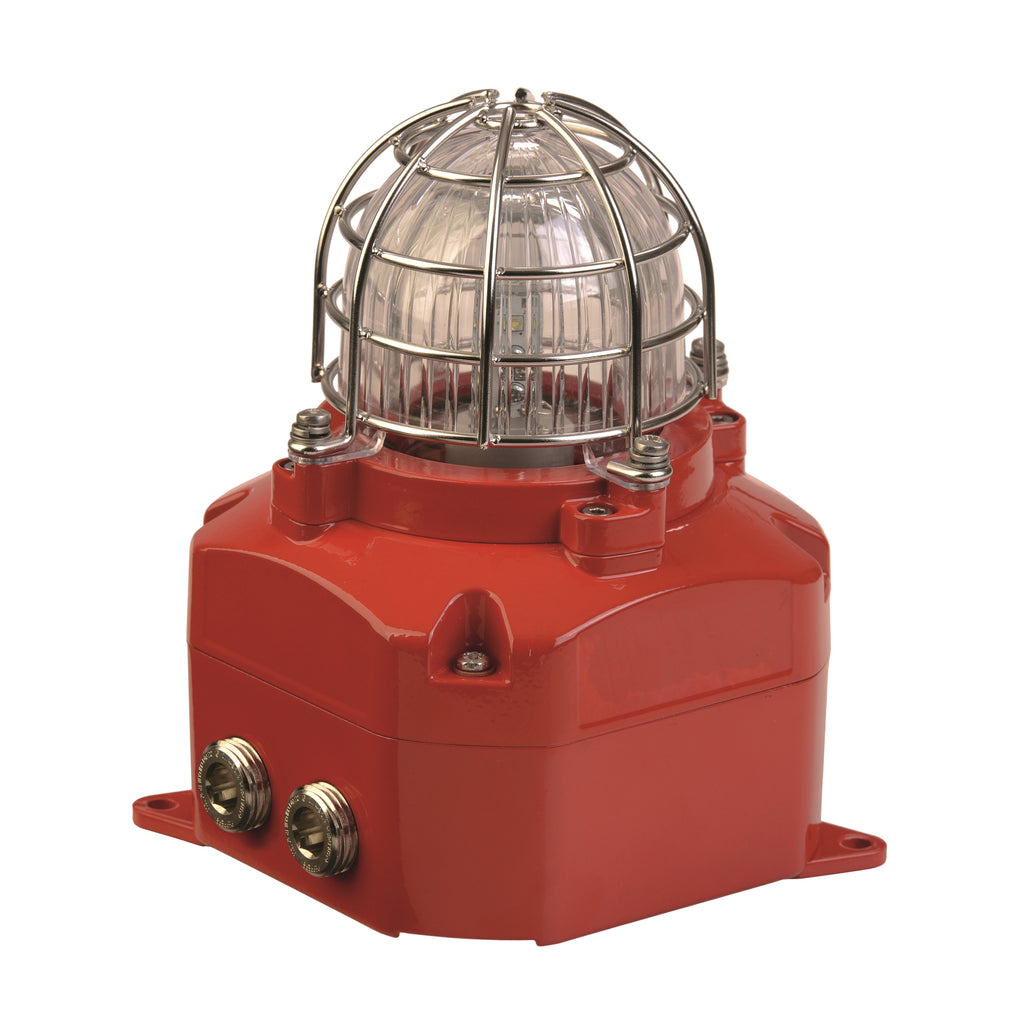

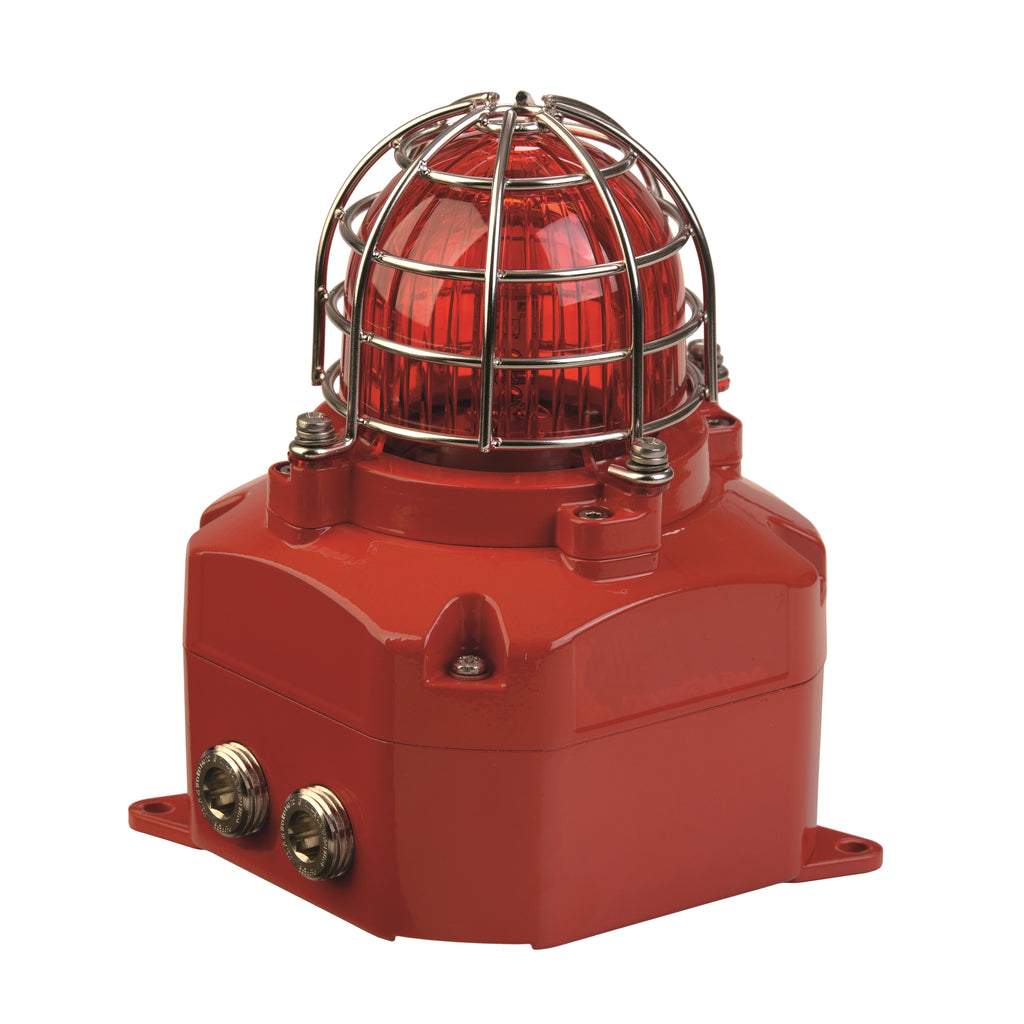

D2xB1LD2 Haz Loc LED Beacon Warning Light

The hazardous location D2xB1LD2 LED beacon and status light is UL/cULs approved for Class I Div 2, Class II Div 2, Class I Zone 2/22 as well as IECEx and ATEX certified for Zone 2 and 22 applications.

The D2x1BLD2 utilises an array of high power Cree® LED's, orientated to optimise visibility in any direction. The beacon can be configured as a steady light for status indicator use, with a light output of up to 87 candela. Alternatively one of the five flashing modes, with a effective output of up to 180 candela, may be used for warning applications. DC voltage versions feature three remotely selectable stages enabling multiple warnings to be signalled from one device. The UV stable colour filter enhances the light output and is field replaceable. The 24Vdc version is UL and cUL approved to UL1638 for private mode fire alarm use.

Specification

Source: Array of 4 x High Power Cree® LED's
Eff. Intensity cd: 73.4 cd UL1638 Private mode fire
Eff. Intensity cd: 180 cd UL1638 General signaling
Peak Intensity cd: 300,000 cd
Eff. Intensity cd: 87 cd High power steady
Lens colours: Amber, Blue, Clear, Green, Magenta, Red & Yellow
LED life: >60,000 hours
Voltages DC: 24V dc (18-54V dc)
In-rush: 1.88A for 2ms @ 24V dc
Voltages AC: 115V ac; 230V ac
Ingress protection: IP rating per EN60529:IP66
Type rating per UL50E/NEMA250:4/4X/3R/13
Enclosure material: Marine grade LM6 aluminum alloy
Enclosure colour: Red (RAL3000), Grey (RAL7038)
Lens material: Borosilicate glass dome with PC prismatic lens cover
Guard: Stainless Steel dome guard as standard
Cable entries: 2 x M20x1.5, 2 x 1/2"NPT, 1 x 3/4"NPT
Stopping plugs: Nickel Plated Brass plugs included
Optional Brass or Stainless Steel
Ground/Earth stud: M5
Terminals: 0.5 - 2.5mm² (20-14 AWG)
Line monitoring: Blocking diode included
EOL can be factory fitted
Operating temp: -40 to +50°C [-40° to +122°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: DC: 1.5kg/3.31Ibs AC:1.75kg/3.86lbs
* All candela data is representative of performance with clear lens at optimum voltage.

Current Consumption

Nominal
Voltage:
Voltage
range:
Nominal
operating
current:
24V dc 18-54V dc 99.5mA
115V ac 115-120Vac 50/60Hz 68mA
230V ac 220-230Vac 50/60Hz 70mA
Current at 1Hz (60fpm) flash mode
