D2xB1LD3 Class I D2 Synchronized LED Beacon UL 1971 82.1cd, surge current 1.18A for 2ms

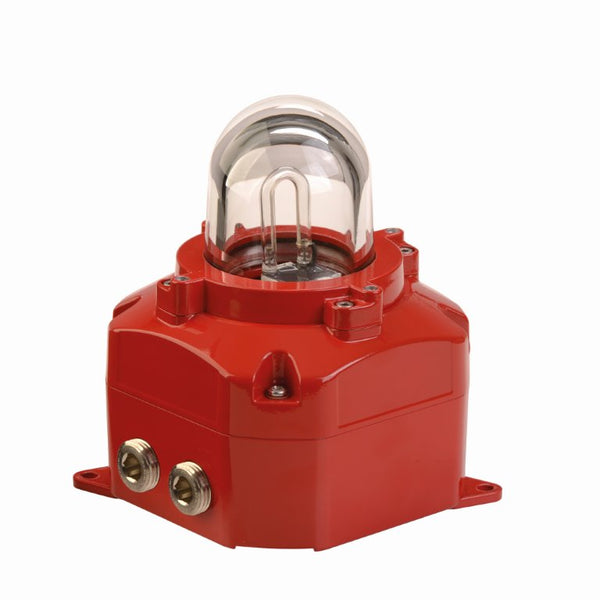

D2xB1LD3-H UL1971 Haz Loc Synchronized LED Light
The haz loc D2xB1LD3-H is an auto-synchronizing LED light/beacon tested to UL1971 suitable for public mode fire alarm, ADA compliant, hearing impaired applications. The unit is UL/cUL approved for Class I Div 2, Class II Div 2, Class I Zone 2/22 as well as IECEx and ATEX certified for Zone 2 and 22 hazardous area applications.
The D2x1BLD3-H utilises an array of high power Cree® LED's, orientated to optimise visibility in any direction. Multiple D2xB1LD3-H units will auto-synchronize when powered from the same power source removing the need for any additional sync modules on the circuit. The D2xB1LD3-H contains a supervisory diode and duplicated pluggable terminals that not only simplify installation but also enable a 4 wire connection. UL1971 effective candela rating of 82.1cd.
Features Public mode fire use UL1971 & CAN/ULC-S526 Private mode fire use UL1638 Synchronized for over 2 hours per UL1971 82.1 eff. candela – UL1971 Public mode fire 112.5 eff. candela – UL1638 Private mode fire 252.0 eff. candela – UL1638 General signaling Ultra low operating current of 153mA In rush limiting circuit: 1.18A Choice of four UL1971 tested flash rates: 1Hz, 1.3Hz, 1.5Hz & 2Hz Marine grade aluminum enclosure Ingress protection Type 4/4X/3R/13, IP66 High impact resistant Borosilicate glass lens Duplicate, pluggable cable terminations Conduit mounting via integral 3/4" NPT entry Surface mounting via user installed lugs Dual 1/2"NPT and dual M20 entries Supplied with haz loc rated stopping plugs Appro vals UL/cUL File ref: E245313 IECEx certficate: IECEx ULD 14.0004X ATEX certificate: DEMKO 14 ATEX 4786493
