D2xB1X05 Haz Loc Xenon Strobe 5 joule, 48VDC - 115VAC - 230VAC
Log in or Create an Account to see pricing and buy online.

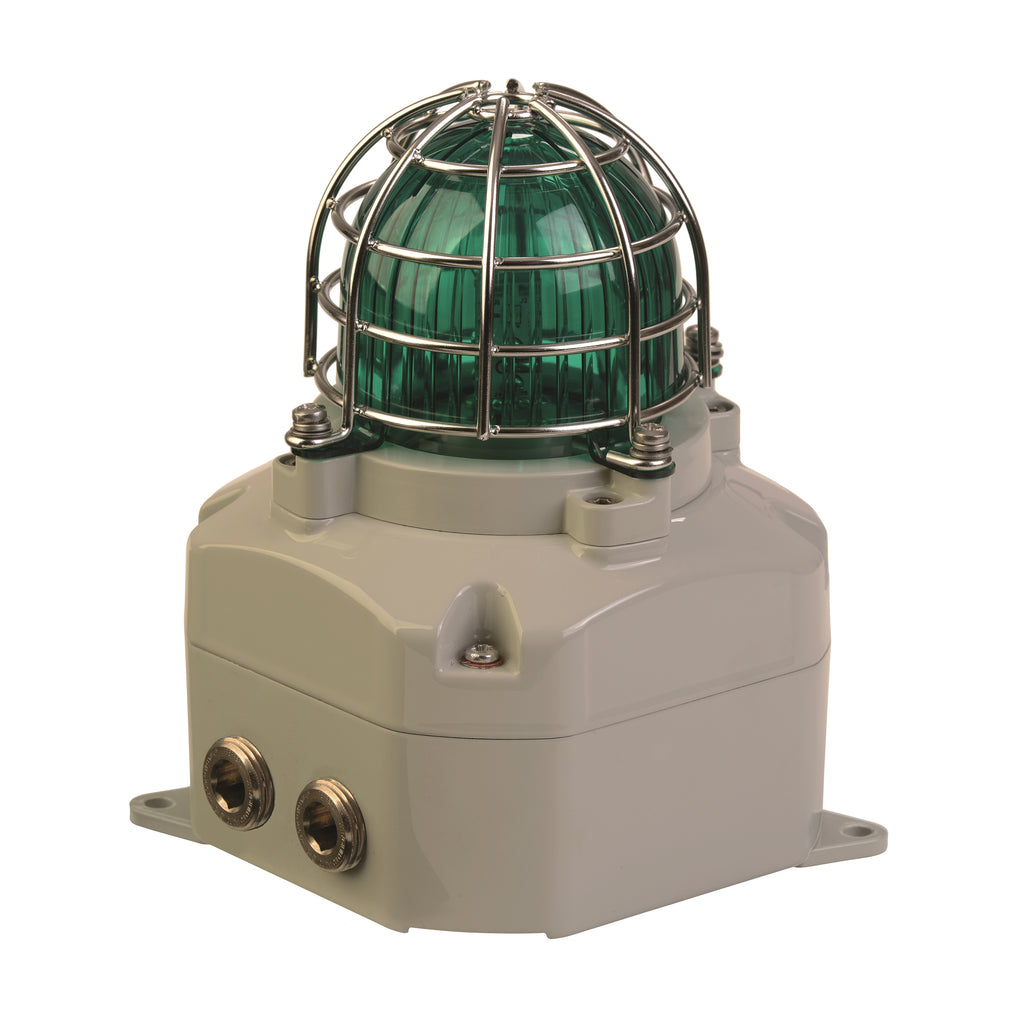

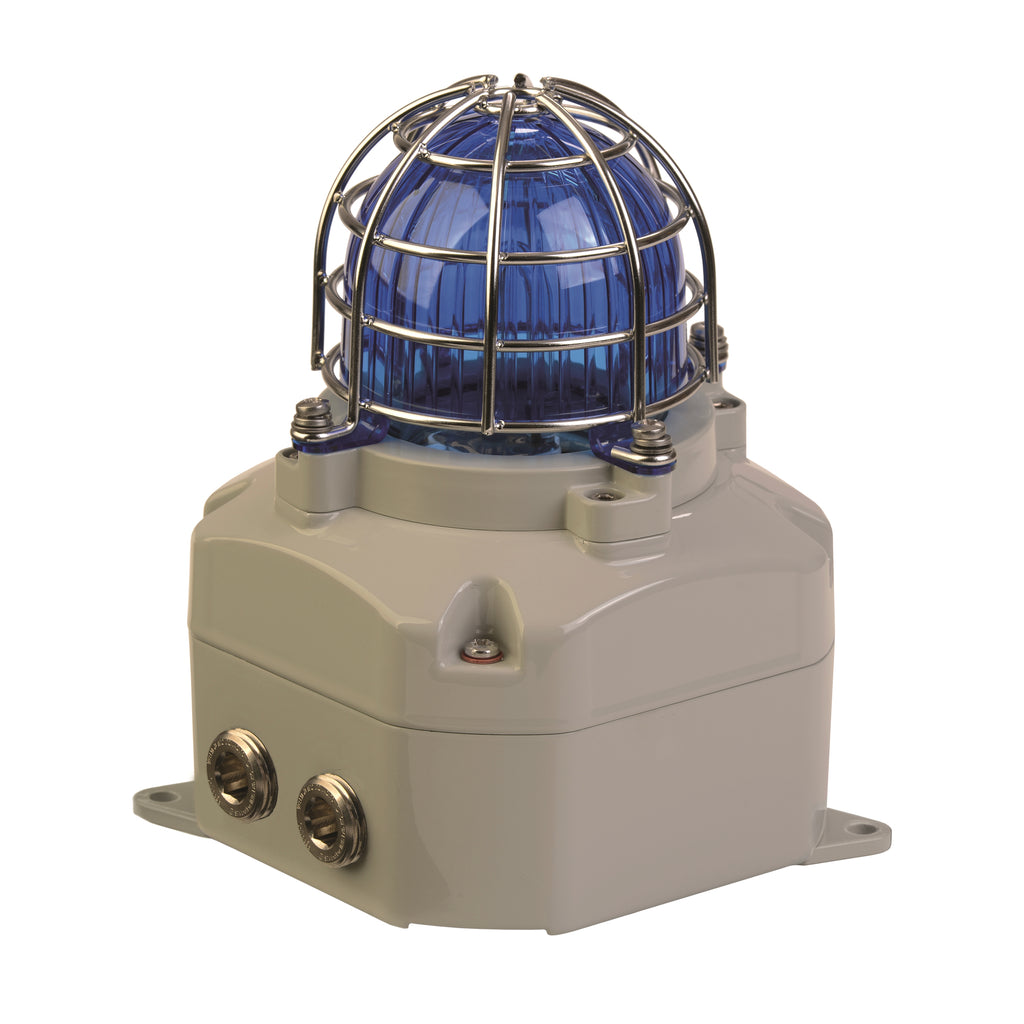

D2xB1X05 Haz Loc Xenon Strobe Beacon Warning Light
The D2xB1X05 features a high output 94.78cd, 5 Joule Xenon strobe beacon.
Low current consumption and high SPL in a robust Type 4/4X, IP66 enclosure ensure the D2xB1X05 is suitable for haz loc fire alarm system and general signalling applications.
The corrosion proof, marine grade aluminium die cast enclosure is phosphated and powder coated providing resilience in the harshest of hazardous location environments.
One device, globally certified: ATEX, IECEx Zone 2 & 22; NEC/CEC CI D2 and CII D2; NEC CI Zone 2 and Zone 22; CEC Zone 2 & 22 and CII D2.
UL & cUL approved 24Vdc version is UL1638 compliant for private mode fire alarm use.
Specification
Energy: | 5 Joules (5Ws) |
Flash rate: | 1Hz (60 fpm) |
Peak Candela: | 500,000 cd - calculated from energy (J) |
Effective Intensity cd: | 250 cd - calculated from energy (J) |
Peak Candela: | 33,410 cd* - measured ref. to I.E.S. |
Effective Intensity cd: | 94.78 cd* - measured ref. to I.E.S. |
Lens colours: | Amber, Blue, Clear, Green, Magenta, Red & Yellow |
Voltages DC: | 24Vdc; 48Vdc |
Voltages AC: | 115Vac; 230Vac |
Ingress protection: | IP rating per EN60529:IP66 Type rating per UL50E/NEMA250:4/4X/3R/13 |
Enclosure material: | Marine grade LM6 aluminum alloy |
Colour: | Red (RAL3000), Grey (RAL7038) |
Lens material: | Borosilicate glass dome with PC prismatic lens cover |
Guard: | Stainless Steel dome guard as standard |
Cable entries: | 2 x M20x1.5, 2 x 1/2"NPT, 1 x 3/4"NPT |
Stopping plugs: | Nickel Plated Brass plugs included |
Ground/Earth stud: | M5 |
Terminals: | 0.5 - 2.5mm² (20-14 AWG) |
Line monitoring: | Blocking diode included EOL can be factory fitted |
Operating temp: | -40 to +50°C [-40° to +122°F] |
Storage temp: | -40 to +70°C [-40° to +158°F] |
Relative humidity: | 90% at 20°C [68°F] |
Weight: | DC: 1.5kg/3.31Ibs AC:1.75kg/3.86lbs |
* All candela data is representative of performance with clear lens at optimum voltage. |
Current Consumption
Nominal Voltage: |
Voltage range: |
Nominal operating current: |
---|---|---|
24V dc | 24V dc | 560mA |
48V dc | 48V dc | 260mA |
115V ac | 115-120Vac 50/60Hz | 185mA |
230V ac | 220-230Vac 50/60Hz | 107mA |
