D2xB1X10 Haz Loc Xenon Strobe 10 joule - 48VDC - 115VAC - 230VAC

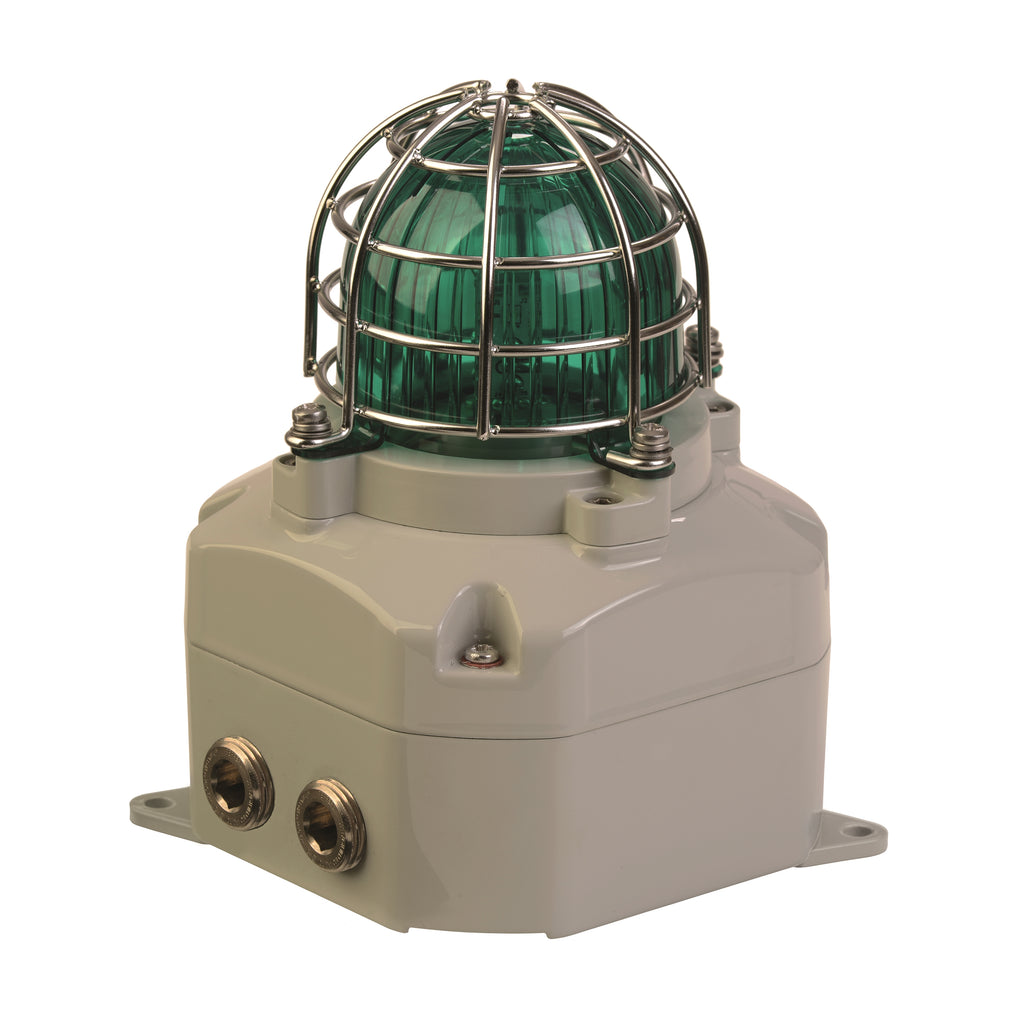

D2xB1X10 Haz Loc Xenon Strobe Beacon Warning Light
The D2xB1X10 features a high output 228.8cd, 10 Joule Xenon strobe beacon.
Low current consumption and high SPL in a robust Type 4/4X, IP66 enclosure ensure the D2xB1X10 is suitable for haz loc fire alarm system and general signalling applications.
The corrosion proof, marine grade aluminium die cast enclosure is phosphated and powder coated providing resilience in the harshest of hazardous location environments.
One device, globally certified: ATEX, IECEx Zone 2 & 22; NEC/CEC CI D2 and CII D2; NEC CI Zone 2 and Zone 22; CEC Zone 2 & 22 and CII D2.
UL & cUL approved 24Vdc version is UL1638 compliant for private mode fire alarm use.
|Energy:||10 Joules (10Ws)|
|Flash rate:||1Hz (60 fpm)|
|Peak Candela:||1,000,000 cd - calculated from energy (J)|
|Effective Intensity cd:||500 cd - calculated from energy (J)|
|Peak Candela:||101,784 cd* - measured ref. to I.E.S.|
|Effective Intensity cd:||288.8 cd* - measured ref. to I.E.S.|
|Lens colours:||Amber, Blue, Clear, Green,
Magenta, Red & Yellow
|Voltages DC:||24Vdc; 48Vdc|
|Voltages AC:||115Vac; 230Vac|
|Ingress protection:||IP rating per EN60529:IP66
Type rating per UL50E/NEMA250:4/4X/3R/13
|Enclosure material:||Marine grade LM6 aluminum alloy|
|Colour:||Red (RAL3000), Grey (RAL7038)|
|Lens material:||Borosilicate glass dome with PC prismatic lens cover|
|Guard:||Stainless Steel dome guard as standard|
|Cable entries:||2 x M20x1.5, 2 x 1/2"NPT, 1 x 3/4"NPT|
|Stopping plugs:||Nickel Plated Brass plugs included|
|Terminals:||0.5 - 2.5mm² (20-14 AWG)|
|Line monitoring:||Blocking diode included
EOL can be factory fitted
|Operating temp:||-40 to +50°C [-40° to +122°F]|
|Storage temp:||-40 to +70°C [-40° to +158°F]|
|Relative humidity:||90% at 20°C [68°F]|
|Weight:||DC: 1.5kg/3.31Ibs AC:1.75kg/3.86lbs|
|* All candela data is representative of performance with clear lens at optimum voltage.|
