Federal Signal: WB

Weatherproof back box - gray, aluminium / thermoplastic

More from this collection

Federal Signal: WB

Weatherproof back box - gray, aluminium / thermoplastic

Description

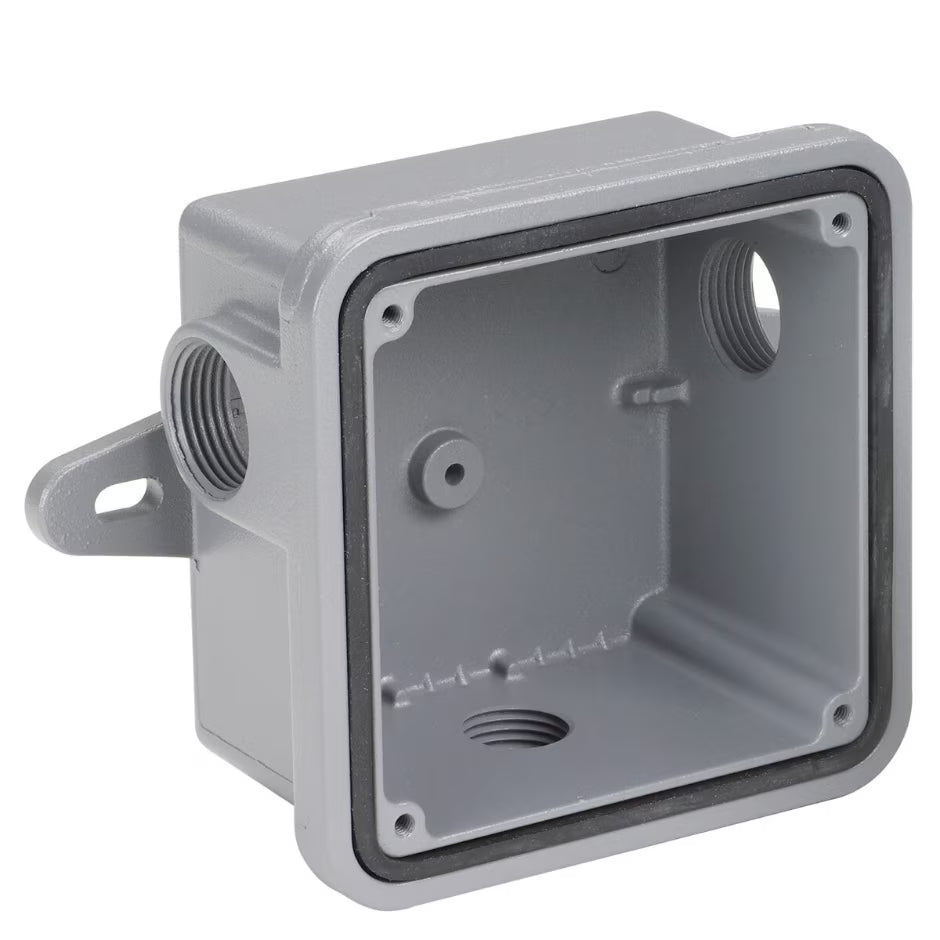

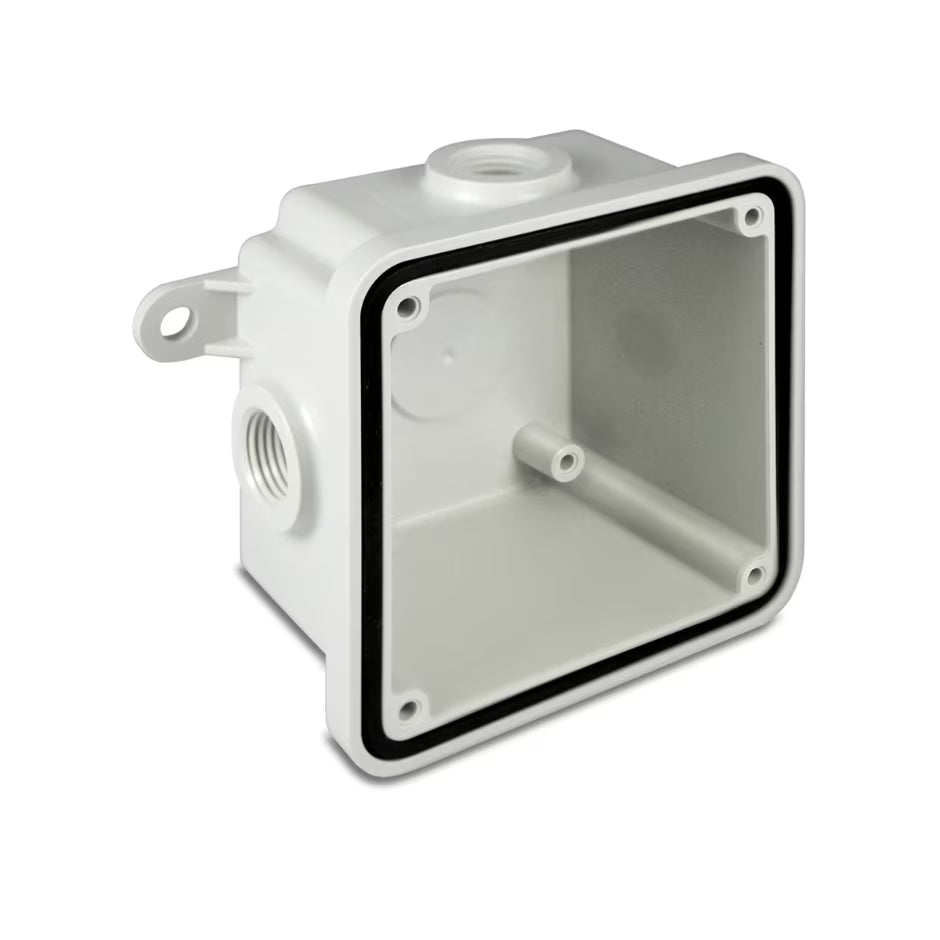

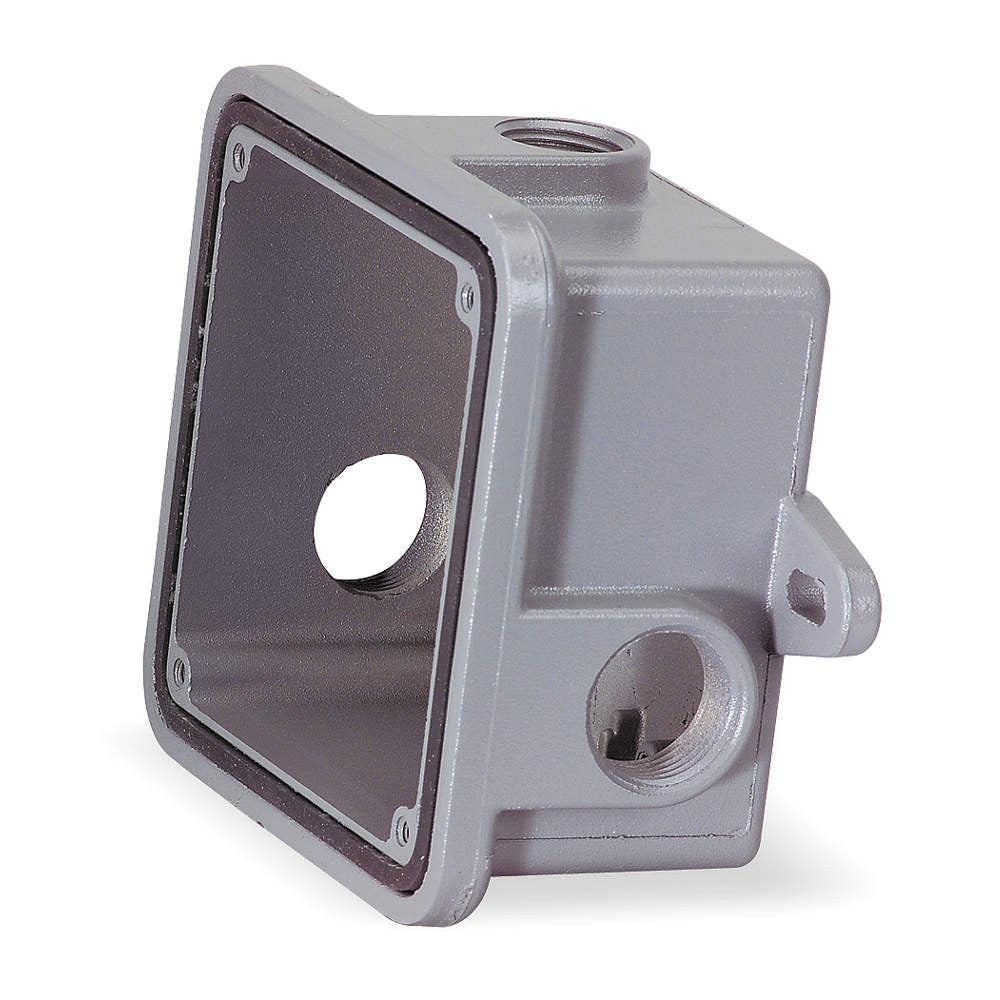

Weatherproof housing for outdoor use with neoprene gasket, complete with mounting lugs. Available in molded thermoplastic or cast aluminum construction. Housing features a 4-3/8" square box and approximately 2"–2-7/16" depth. Provided with conduit entrances for 1/2" conduit (three entrances) and tapped openings for 1/2" and 3/4" conduit, depending on model. Mounting lugs spaced on 4-1/2" to 5" centers. Shipping weight: 1 lb (0.45 kg).

Features
  • Weatherproof housing for outdoor use
  • Neoprene-gasketed construction
  • Available in molded thermoplastic (WB-NM) or cast aluminum (WB)
  • 4-3/8" square box
  • Approx. 2"–2-7/16" depth (model dependent)
  • Mounting lugs included
  • Mounting lug spacing: 4-1/2" to 5" centers
  • Conduit entrances: (3) openings for 1/2" conduit and tapped for 1/2" or 3/4" conduit (model dependent)
  • Shipping weight: 1 lb (0.45 kg)
  • Manufacturer warranty: 5 years
Select product and buy
PART NUMBER: WB
Quantity
$ 110.39
Description

Weatherproof housing for outdoor use with neoprene gasket, complete with mounting lugs. Available in molded thermoplastic or cast aluminum construction. Housing features a 4-3/8" square box and approximately 2"–2-7/16" depth. Provided with conduit entrances for 1/2" conduit (three entrances) and tapped openings for 1/2" and 3/4" conduit, depending on model. Mounting lugs spaced on 4-1/2" to 5" centers. Shipping weight: 1 lb (0.45 kg).

Features
  • Weatherproof housing for outdoor use
  • Neoprene-gasketed construction
  • Available in molded thermoplastic (WB-NM) or cast aluminum (WB)
  • 4-3/8" square box
  • Approx. 2"–2-7/16" depth (model dependent)
  • Mounting lugs included
  • Mounting lug spacing: 4-1/2" to 5" centers
  • Conduit entrances: (3) openings for 1/2" conduit and tapped for 1/2" or 3/4" conduit (model dependent)
  • Shipping weight: 1 lb (0.45 kg)
  • Manufacturer warranty: 5 years
