Federal Signal: 154XST

Class I Divison 2 hazardous location supervised warning light - 170cd, UL1638

Federal Signal: 154XST
  • Federal Signal: 154XST
  • Federal Signal: 154XST
  • Federal Signal: 154XST
  • Federal Signal: 154XST
  • Federal Signal: 154XST
  • Federal Signal: 154XST
  • Federal Signal: 154XST
  • Federal Signal: 154XST
Accreditation
Accreditation image Accreditation image
Coding

Class I Div 2 Group ABCD T2 Ta ≤ +40°C
Class I Div 2 Group ABCD T1 Ta ≤ +65°C
Class I Zone 2 Group IIC T2 Ta ≤ +40°C
Class I Zone 2 Group IIC T1 Ta ≤ +65°C
Class II Div 1 Group EFG T5 Ta ≤ +65°C
Class III T5 Ta ≤ +65°C

Videos

More from this collection
Federal Signal: 154XST

Federal Signal: 154XST

Class I Divison 2 hazardous location supervised warning light - 170cd, UL1638
Description

Federal Signal’s Model 154XST hazardous location strobe light is available in 24Vdc with a 4-wire supervisable power circuit for fire alarm* and suppression supervised control panels.

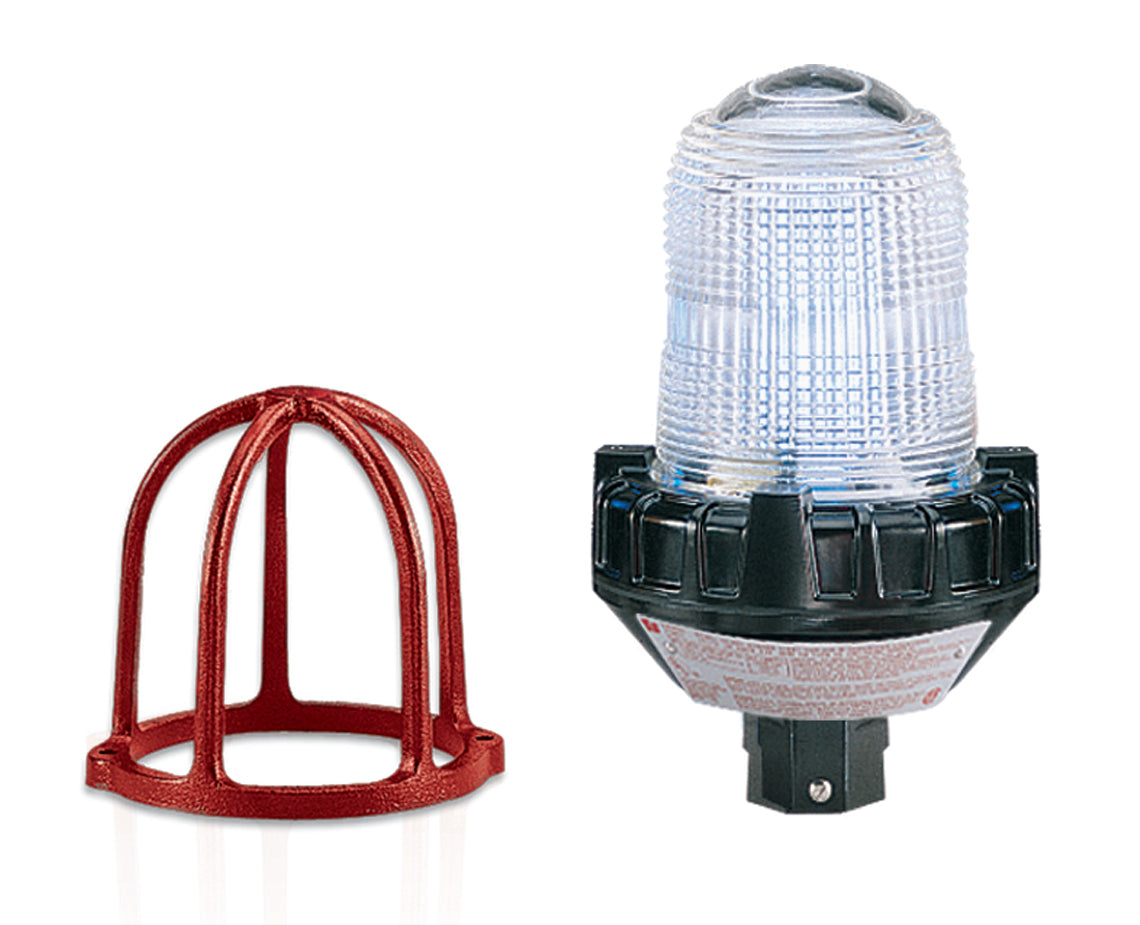

This hazardous location warning light has an aluminum base, coated for corrosion resistance that is ready for surface mounting or mounting on a 3/4-inch pipe. The dome guard (included) fits over the glass dome to protect it against accidental collision with moving equipment, such as forklifts.

This warning light can be used for plant evacuation or other communication needs.

* Fire alarm applications are outside the scope of the UL and cUL certification, consult local Authorities Having Jurisdiction (AHJ)
Features
  • Available in 12–24Vdc
  • Four wires and supervisory diode
  • Five dome colors: Amber, Blue, Clear, Green, and Red

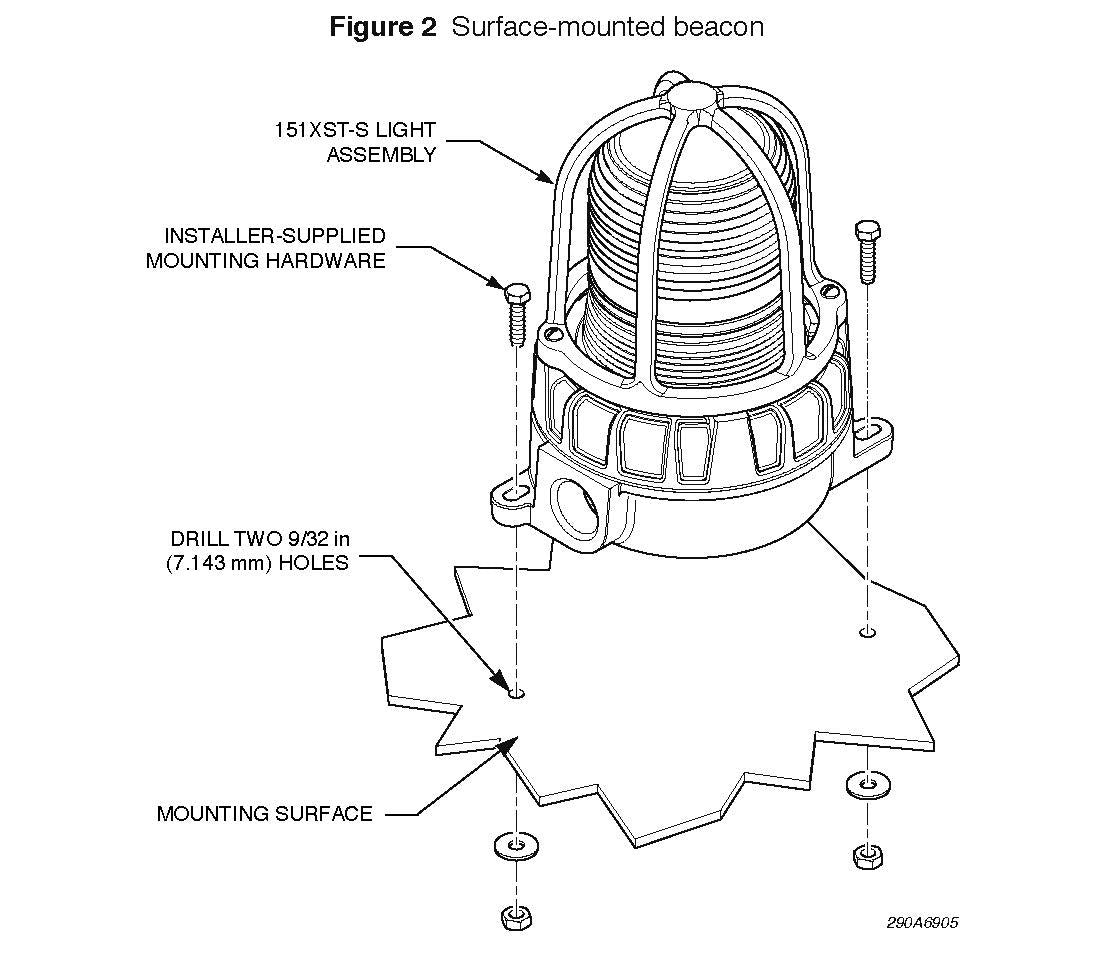

  • 3/4-inch NPT pipe mount or surface mount options
  • Dome guard included
  • Conformal coated PCBA
  • Indoor/outdoor use
  • Type 4X, IP66 enclosure
  • IP69K compliant
  • Marine Rated
  • CSFM Approved
  • UL and cUL for Class I, Division 2, Groups A, B, C and D; Class II, Division 1, Groups E, F and G; Class III; Class I, Zone 2, Group IIC
  • Manufacturer warranty: 5 years
Select product and buy
PART NUMBER: 154XST-012-024B
Quantity
$ 1,060.51 $ 1,555.40
Description

Federal Signal’s Model 154XST hazardous location strobe light is available in 24Vdc with a 4-wire supervisable power circuit for fire alarm* and suppression supervised control panels.

This hazardous location warning light has an aluminum base, coated for corrosion resistance that is ready for surface mounting or mounting on a 3/4-inch pipe. The dome guard (included) fits over the glass dome to protect it against accidental collision with moving equipment, such as forklifts.

This warning light can be used for plant evacuation or other communication needs.

* Fire alarm applications are outside the scope of the UL and cUL certification, consult local Authorities Having Jurisdiction (AHJ)
Features
  • Available in 12–24Vdc
  • Four wires and supervisory diode
  • Five dome colors: Amber, Blue, Clear, Green, and Red
  • 3/4-inch NPT pipe mount or surface mount options
  • Dome guard included
  • Conformal coated PCBA
  • Indoor/outdoor use
  • Type 4X, IP66 enclosure
  • IP69K compliant
  • Marine Rated
  • CSFM Approved
  • UL and cUL for Class I, Division 2, Groups A, B, C and D; Class II, Division 1, Groups E, F and G; Class III; Class I, Zone 2, Group IIC
  • Manufacturer warranty: 5 years
Downloads

Datasheet.pdf

Manual.pdf
