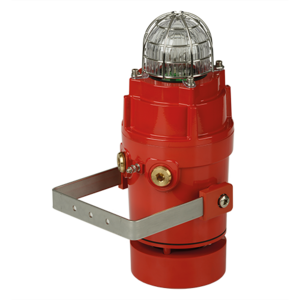

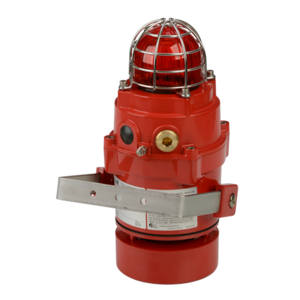

E2S: D1xC2X05R / D1xC2X10R

The D1xC2X05R and D1xC2X10R are globally certified alarm horn sounders with a compact, omni-directional horn combined with a Xenon strobe beacon, available in 5 Joule and 10 Joule versions respectively. The robust Type 4/4X, IP66 marine grade, corrosion-proof aluminum enclosure is approved for Class I Div 1, Zone 1, IECEx and ATEX Zone 1, 2, 21 & 22 explosion-proof signaling applications.

Featuring 64 alarm tones, each of the 4 stage/channels can be remotely activated. Class D amplification provides a high sound output with a choice of two power modes. The threaded flameproof joint, multiple cable entries, and duplicated, pluggable terminations simplify both installation and routine maintenance. The 24Vdc version is approved for public (alarm horn) and private mode fire alarm use. SIL1 and SIL2 compliant to IEC 61508 (2010) as standard.

D1xC2X05R / D1xC2X10R
• Maximum sound pressure level output of 114dB(A)
• Choice of 64 alarm tone frequencies.
• 4 remotely selectable alarm stages/channels
• Positive or negative line stage/channel switching
• Automatic synchronisation on multi-beacon &
sounder systems
• User selectable strobe flash rates
• Field replaceable lens colour filter
• Ratchet adjustable 316 stainless steel bracket
• Available with custom tone configurations and
frequencies
• Robust corrosion proof aluminium enclosure
• Duplicate cable terminations
• UL464 / CAN/ULC-S525 & UL1638 / CAN/ULC-S526
• Manufacturer warranty: 10 years

Differences
• Energy (Joules): 5J (D1xC2X05R); 10J (D1xC2X10R)
• Peak Candela – calculated from energy (J): 500,000cd
(D1xC2X05R); 1,000,000 cd(D1xC2X10R)
• Peak Candela - measured ref. to I.E.S.: 46,976 cd* (D1xC2X05R); 85,544 cd* (D1xC2X10R)
• Eff. Intensity – measured ref. to I.E.S.: 143 cd* (D1xC2X05R);
260 cd* (D1xC2X10R)
• Eff. Intensity – calculated from energy (J): 250
cd (D1xC2X05R); 500 cd (D1xC2X10R)
