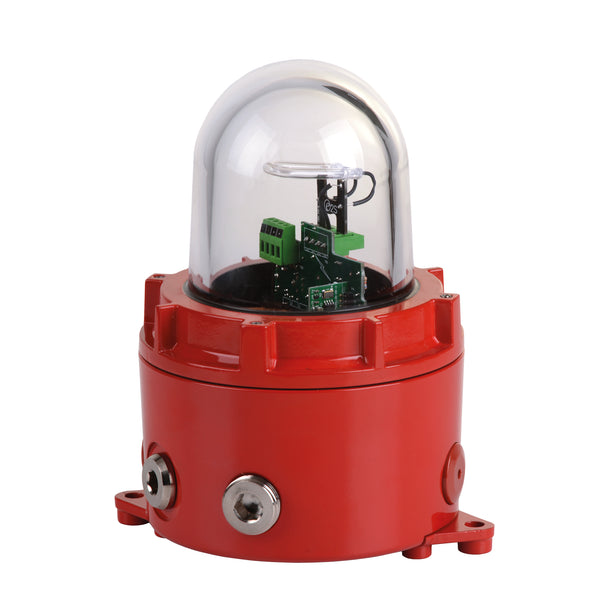

D1xB2XH2 UL 1971 Auto Sync Explosion Proof 190cd Strobe - 1180ma surge current

Log in or Create an Account to see pricing and buy online.

The D1xB2XH2 is the brightest explosion proof Xenon Strobe light/beacon available for public mode fire alarm, ADA compliant, hearing impaired applications. The unit is UL/cUL approved for Class I Div 1, Class II Div 2, Class I Zone 1 suitable for both gas and dust environments.

  • Public mode fire use UL1971, UL1638 & CAN/ULC-S526
  • Auto synchronized as per UL1971
  • 190.6cd - UL1971 Public mode fire
  • Operating current only 1.165A
  • In rush limited to 1.5A for 5ms
  • Choice of four flash rates
  • Marine grade aluminum enclosure
  • Ingress Type 4/4X/3R/13, IP66
  • High impact Borosilicate glass lens
  • Duplicate, pluggable terminations
  • Diode protected for supervised circuits
  • Conduit mount via 3/4" NPT entry
  • Surface mount via user installed lugs
  • Dual 3/4"NPT and dual M20 side entries
  • Supplied with stopping plugs

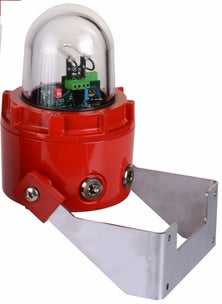

  • Optional multi-position wall bracket
