E2S: D1xB2XH2

Class I Division 1 explosion-proof xenon strobe - 190cd UL1971, 24Vdc, auto sync

Accreditation
Accreditation image Accreditation image Accreditation image Accreditation image
Coding

NEC / CEC:
Class I Div 1 Group ABCD T4A Ta -55°C to +80°C
Class I Div 1 Group ABCD T5 Ta -55°C to +55°C
Class I Div 1 Group ABCD T6 Ta -55°C to +40°C
Class II Div 1 Group EFG T4 Ta -55°C to +80°C
Class II Div 1 Group EFG T4A Ta -55°C to +60°C
Class III Div 1 Ta -55°C to +80°C

NEC:
Class I Zone 1 AEx db IIC T4 Ta -55°C to +80°C
Class I Zone 1 AEx db IIC T5 Ta -55°C to +55°C
Class I Zone 1 AEx db IIC T6 Ta -55°C to +40°C
Zone 21 AEx tb IIIC 131°C Ta -55°C to +80°C

CEC:
Ex db IIC T4 Ta -55°C to +80°C
Ex db IIC T5 Ta -55°C to +55°C
Ex db IIC T6 Ta -55°C to +40°C
Ex tb IIIC 131°C Ta -55°C to +80°C

Approvals

Videos

More from this collection

E2S: D1xB2XH2

Class I Division 1 explosion-proof xenon strobe - 190cd UL1971, 24Vdc, auto sync

Description

The D1xB2XH2 is the brightest explosion proof Xenon Strobe warning light / beacon available for public mode fire alarm applications. UL/cUL/ULC approved for Class I/II Div 1, Class I Zone 1/Zone 21 for gas and dust environments.

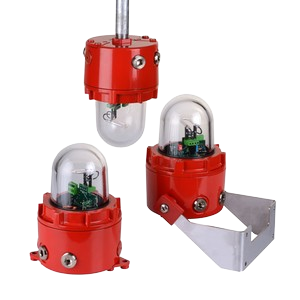

The lightweight, marine grade, enclosure has been designed to create the optimal fire signal for ADA compliant, hearing impaired applications. Its innovative construction includes both conduit or surface mounting capabilities – without the need for any additional accessories. For complete flexibility an optional stainless-steel bracket enables the explosion proof warning light to be rotated and positioned in any orientation. Multiple D1xB2XH2 units will auto-synchronize when powered from the same power source; no synchronization modules are required.

Features
  • Public mode fire use UL1971 & CAN/ULC-S526
  • Auto synchronized as per UL1971
  • 190.6cd – UL1971 Public mode fire
  • Operating current only 1.165A in rush limited to 1.5A for 5ms
  • Choice of four flash rates
  • Marine grade aluminum enclosure, Type 4/4X/3R/13, IP66
  • High impact Borosilicate glass lens
  • Duplicate, pluggable terminations
  • Diode protected for supervised circuits
  • Conduit mount via 3/4" NPT entry

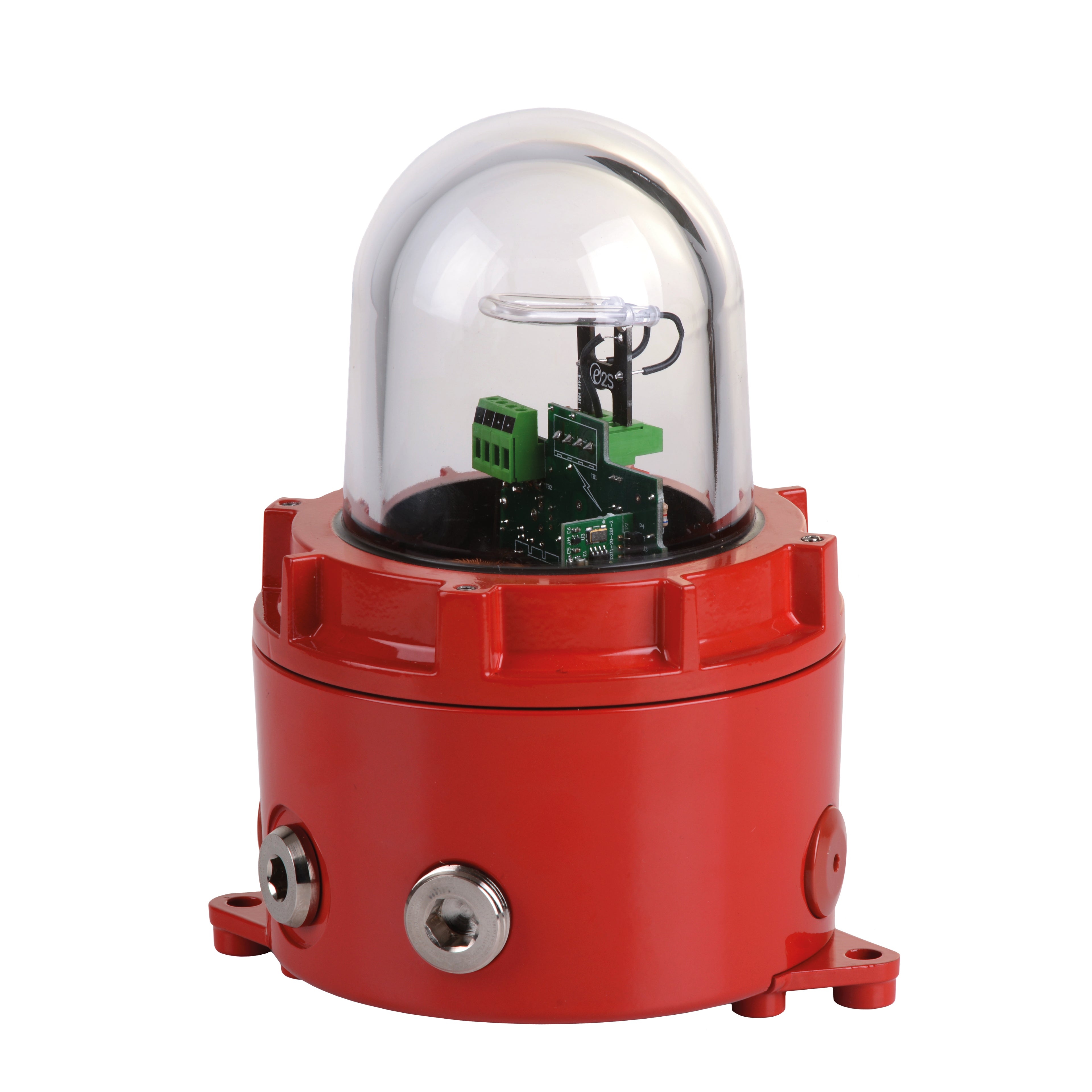

  • Surface mount via user installed lugs
  • Dual 3/4"NPT and dual M20 side entries
  • Supplied with stopping plugs

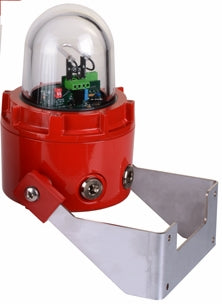

  • Optional multi-position wall bracket
  • UL Marine approved
  • Manufacturer warranty: 10 years
Approvals
Select product and buy
PART NUMBER: D1xB2XH2DC024MN0H1R/C
Quantity
Sale price  $ 1,712.71 Regular price  $ 2,415.53
Description

The D1xB2XH2 is the brightest explosion proof Xenon Strobe warning light / beacon available for public mode fire alarm applications. UL/cUL/ULC approved for Class I/II Div 1, Class I Zone 1/Zone 21 for gas and dust environments.

The lightweight, marine grade, enclosure has been designed to create the optimal fire signal for ADA compliant, hearing impaired applications. Its innovative construction includes both conduit or surface mounting capabilities – without the need for any additional accessories. For complete flexibility an optional stainless-steel bracket enables the explosion proof warning light to be rotated and positioned in any orientation. Multiple D1xB2XH2 units will auto-synchronize when powered from the same power source; no synchronization modules are required.

Features
  • Public mode fire use UL1971 & CAN/ULC-S526
  • Auto synchronized as per UL1971
  • 190.6cd – UL1971 Public mode fire
  • Operating current only 1.165A in rush limited to 1.5A for 5ms
  • Choice of four flash rates
  • Marine grade aluminum enclosure, Type 4/4X/3R/13, IP66
  • High impact Borosilicate glass lens
  • Duplicate, pluggable terminations
  • Diode protected for supervised circuits
  • Conduit mount via 3/4" NPT entry
  • Surface mount via user installed lugs
  • Dual 3/4"NPT and dual M20 side entries
  • Supplied with stopping plugs
  • Optional multi-position wall bracket
  • UL Marine approved
  • Manufacturer warranty: 10 years
