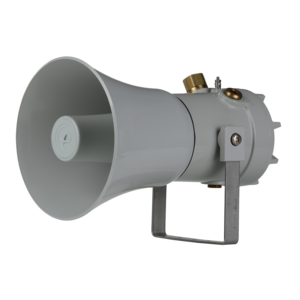

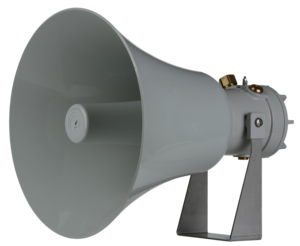

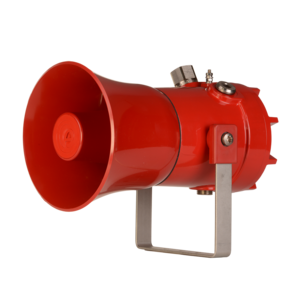

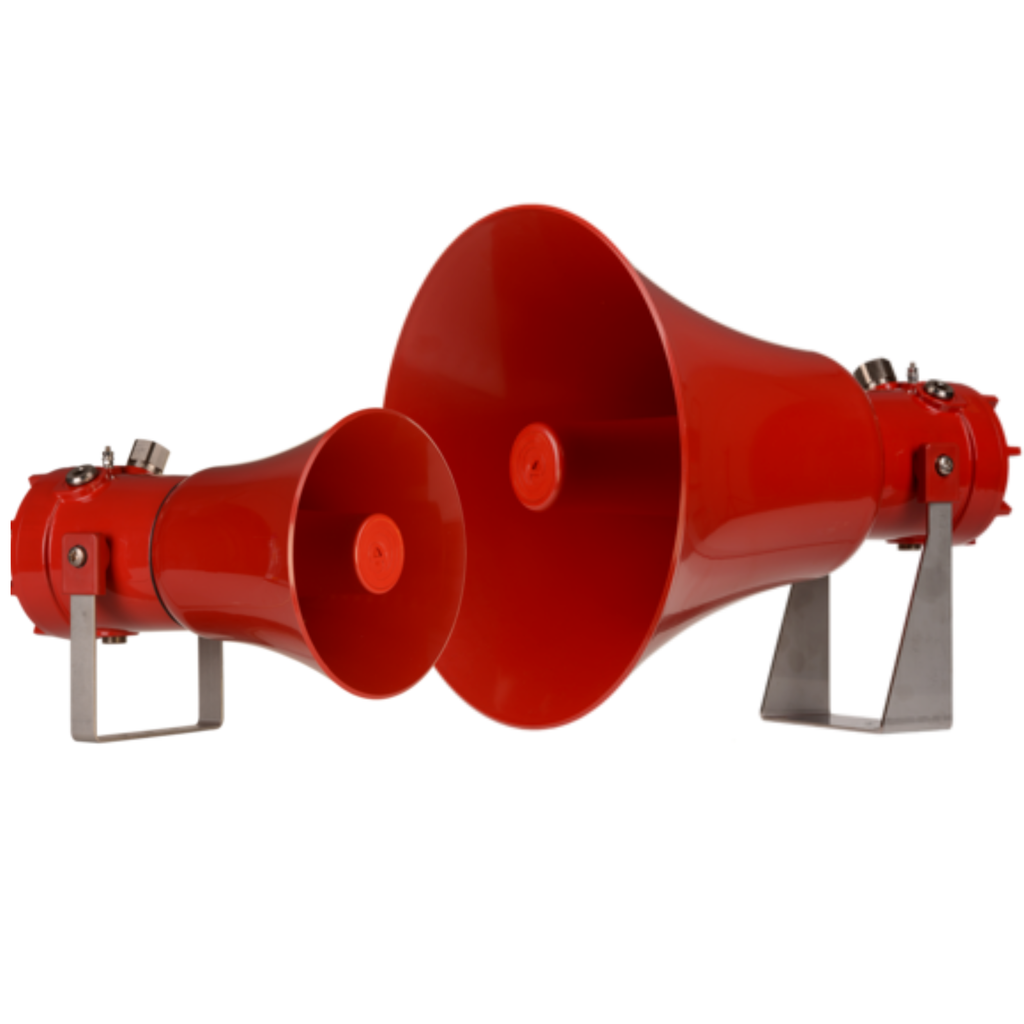

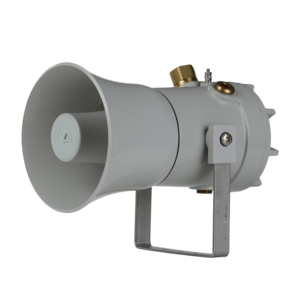

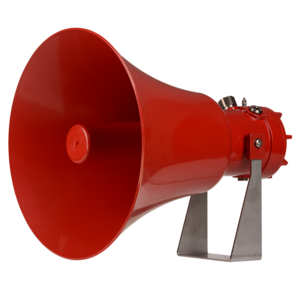

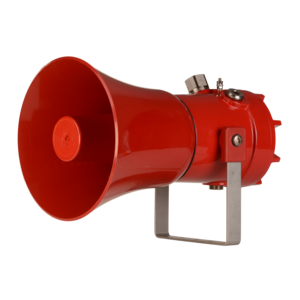

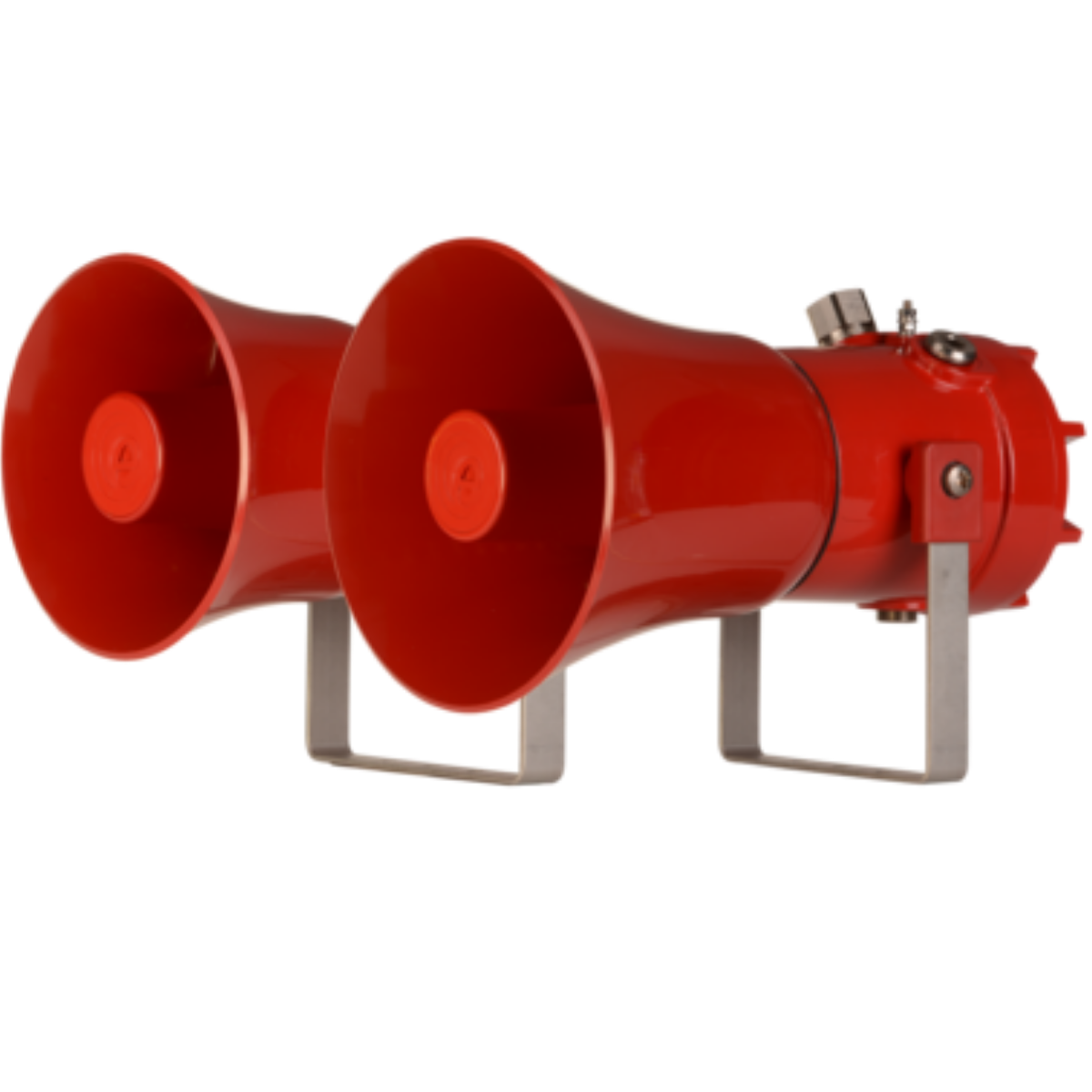

D1xL1 & D1xL2 Explosion proof Speakers - Multi-Tap, 15W & 25W - 70V RMS
Log in or Create an Account to see pricing and buy online.
- D1xL1 15W datasheet
- D1xL2 25W datasheet
- D1xL1 & D1xL2 GAS instructions
- D1xL1 & D1xL2 Dust instructions
- D1 series Video
The D1xL1 & D1xL2 are UL 1480 certified loudspeakers which produce a loud warning signal in a hazardous area. The loudspeaker are approved for use in Gas applications in Class I Division 1 & 2 as well as Class I Zone 0, 1 and 2. D1xS1 & D1xS2 alarm horns and D1xC1 & D1xC2 Combined alarm horn & Strobe are also available as well as variants for Explosive Dust Atmospheres
Features
- High output
- Compact form factor
- Multiple transformer tappings
- Field replaceable flare component
- Robust corrosion proof aluminium enclosure
- Ratchet adjustable stainless steel bracket
- Stainless steel fixings
- Triple cable entries
- Duplicate cable terminations
- Threaded cover joint for fast installation
Approvals
- UL File ref: E230764
- UL1203 Ed. 5
- UL1203 Ed. 5
- CAN/CSA C22.2 No. 25-1966
- CSA C22.2 No. 30-M1986
- CSA C22.2 No. 205-12
- UL1480 Ed. 6 Commercial and professional use
- CSFM listing: 7136-2279:0504
Coding
A1: Gas version
NEC / CEC:
Class I Div 1 ABCD T6 Ta -40°C to +70°C
Class I Div 2 ABCD T6 Ta -40°C to +70°C
Class I Zone 1, 2 IIC T6 Ta -40°C to +70°C
D1: Dust version
NEC / CEC:
Class II Div 1 FG T6 Ta -40°C to +70°C
Class II Div 2 FG T6 Ta -40°C to +70°C
Class III Div 1 & 2
Zone 20, 21, 22 IIIB Ta -40°C to +70°C
Protection concept: Ex d / AEx d
