D2xLF-D2X-L2F-D2X-L2H Hazardous Location Speakers
Log in or Create an Account to see pricing and buy online.
Based on the datasheets provided, here's a concise introduction to these three hazardous location speakers from The Signal Source:

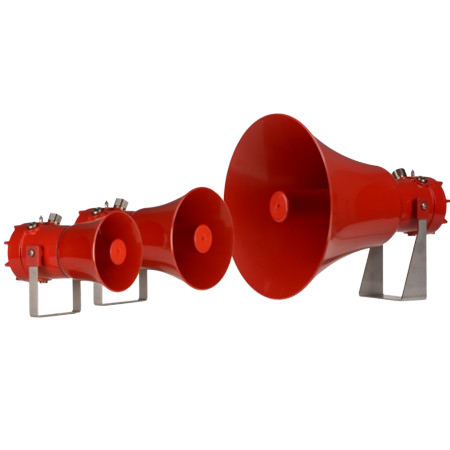

D2xL Series Hazardous Location Speakers
These are marine-grade aluminum PA speakers designed for Class I/II Division 2 and Zone 2 & 22 hazardous environments, featuring re-entrant flare horns with field-replaceable components and IP66/67 protection.
Model Comparison

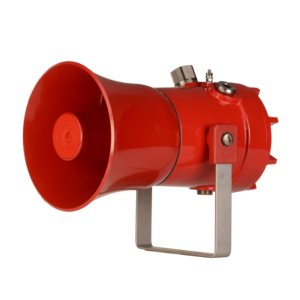

D2xL1F (15W) - Entry-level model
- Sound Output at 10': ~111 dB(A) max
- Compact design for basic PA applications

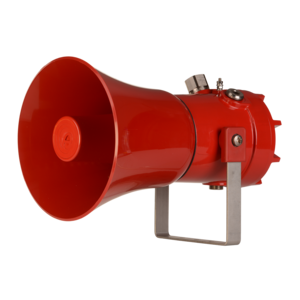

D2xL2F (25W) - Mid-range model
- Sound Output at 10': ~114 dB(A) max
- Standard flare horn design for general-purpose use

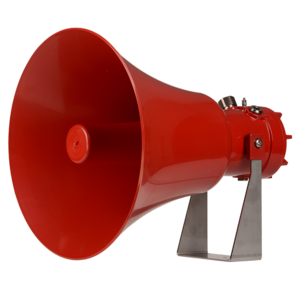

D2xL2H (25W)—High-output model
- Sound Output at 10': ~119 dB(A) max
- High-output flare horn for maximum sound projection
Note: dB levels calculated from 1m specifications using standard 20log₁₀(distance) conversion
Common Features
- Multiple transformer tappings (25V/70V/100V line or low impedance)
- 316 stainless steel ratchet-adjustable brackets
- Triple cable entries with duplicated terminals
- Threaded flameproof joints for easy maintenance
- Operating range: -55°C to +75°C (hazardous areas)
- UL/cUL, IECEx, ATEX, and UKCA certified
The main differentiator is acoustic output capability, with the D2xL2H providing 5 dB more output than the standard D2xL2F at the same power rating through its optimized horn design.
