E2S: ML15F / ML25F / ML25H

NEMA 4X PA horn loudspeakers - multi-tapping, 15W/25W, 120/124/129dB(A), 8000Hz, red/gray color

More from this collection

E2S: ML15F / ML25F / ML25H

NEMA 4X PA horn loudspeakers - multi-tapping, 15W/25W, 120/124/129dB(A), 8000Hz, red/gray color

Description

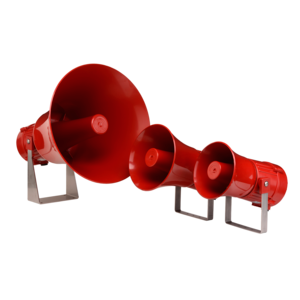

The ML15F, ML25F and ML25H PA loudspeakers are designed for use in harsh environments with high ambient noise levels and provide robust voice notification for fire alarm, emergency, and professional or commercial applications. All models feature IP66 and IP67 rated enclosures manufactured from high-impact, fire-retardant ABS, with dual cable entries and large termination areas including in and out terminals for convenient installation. Each unit is supplied with a 316 stainless steel ratchet-adjustable mounting bracket to allow optimum positioning. The loudspeakers are available in low impedance 8 or 16 Ohm versions and support line transformer options, and all models are UL and cUL approved for Fire Alarm & Emergency and Professional & Commercial use.

The main differences between the models relate to power rating, acoustic output and application coverage. The ML15F is a 15W loudspeaker producing a maximum SPL of 120dB(A), making it the lowest output model in the range and suitable for smaller areas or applications where moderate sound levels are required. The ML25F increases the output with a 25W power rating and 124dB(A) maximum SPL, providing higher sound pressure and wider coverage while maintaining strong intelligibility. The ML25H is the highest output model, also rated at 25W, but featuring a high-output flare horn design capable of producing up to 129dB(A) SPL, making it the most suitable option for large areas or extremely noisy environments requiring maximum sound projection and clarity. Additionally, while the ML15F and ML25F are available with 25, 70 and 100V line transformer options, the ML25H supports 25V and 70V line transformers only, reflecting its design focus on high-output wide-area notification.

Features

ML15F / ML25F / ML25H
• Ingress protection IP66/67 Type 4/4X/13/3R
• Large termination area
• Dual M20 or 1/2" NPT cable entries – adaptors available
• Stopping plug included
• 316 (A4) stainless steel mounting bracket
• Ratchet adjustable ‘U’ bracket for 360° positioning
• Duplicate cable terminations
• Suitable for Fire Alarm & Emergency and Professional & Commercial use
• Manufacturer warranty: 10 years

ML15F
• Rated power 15W RMS
• 120 dB(A) maximum SPL
• 113 dB ±3 dB rated output
• 101 dB ±3 dB sensitivity
• Suitable for applications requiring moderate sound output

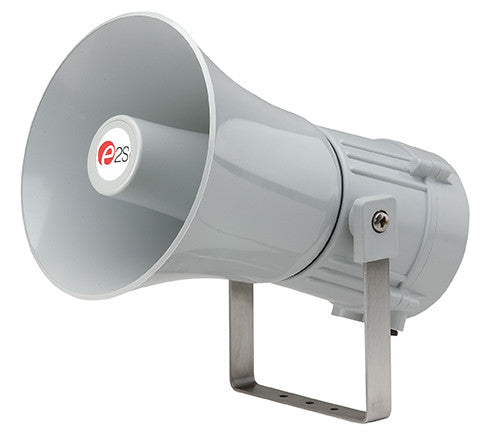

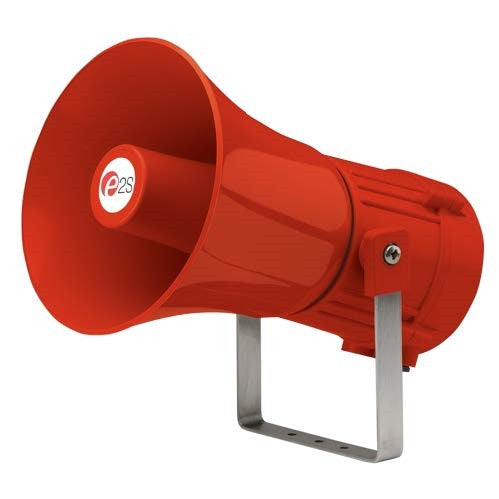

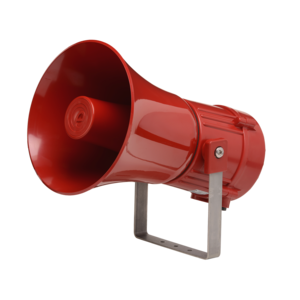

ML25F
• Rated power 25W RMS
• 124 dB(A) maximum SPL
• 119 dB ±3 dB rated output
• 104 dB ±3 dB sensitivity
• Provides higher sound output than ML15F for larger coverage
areas

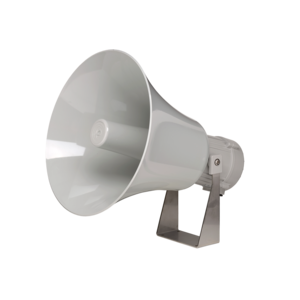

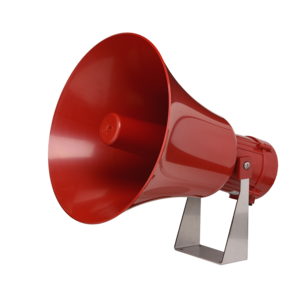

ML25H
• Rated power 25W RMS
• Highest performance model
• 129 dB(A) maximum SPL
• 120 dB ±3 dB rated output
• 106 dB ±3 dB sensitivity
• Designed for applications requiring the loudest sound output
and maximum coverage

Approvals
Select product and buy
PART NUMBER: ML15FV725CN1A1R
Quantity
Sale price  $ 415.44 Regular price  $ 585.91
